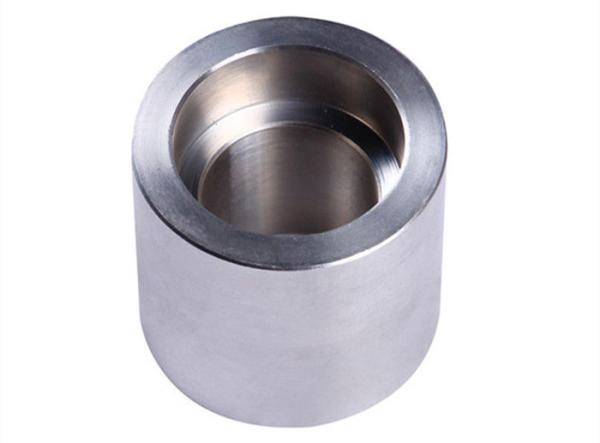

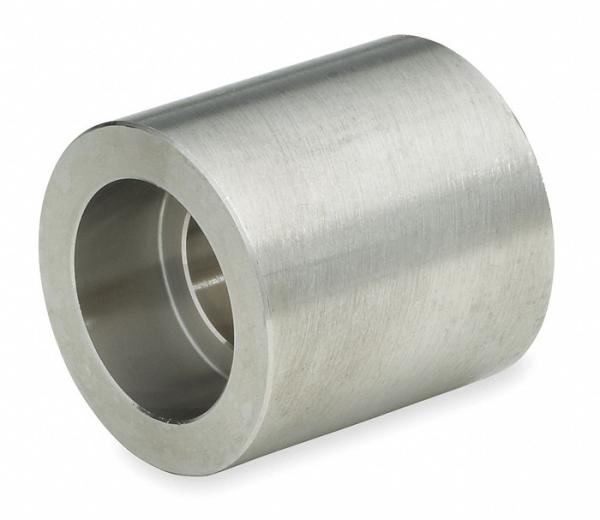

Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F316L
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
Stainless Steel ASTM A182 F316L
Connection :
Socket Weld
Type :
Socket Weld Coupling, Threaded Coupling, Half Coupling, Full Coupling
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
3000 LB, 6000 LB, 9000LB
Standard :
ASME B16.11, BS3799
Heat Treatment :
Solution
Surface :
Anti rust Oil
Description

Socket Weld Coupling Class 3000 3/4 Inch ASTM A182 F316L ASME B16.11

Full Coupling Class 3000

Quality manufacturer supplies socket weld and threaded full and half coupling in class 3000, they attract customers by good price and quality. We also deliver pipe fittings in short time since stock normal sizes product in our warehouse.

We manufacture and export high quality stainless steel, carbon steel and alloy steel forged fittings to many countries, they are 90 degree elbow, 45 degree elbow, equal tee, reducing tee, full coupling, half coupling, pipe union, pipe cap, olet and threaded nipple.

Socket Weld Coupling Dimensions

Size 1/8" to 4" / DN6 to 100
Pressure Rating Class 3000, 6000, 9000
Standard ASME B16.11 and BS3799
Type Straight Coupling and
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L

ASTM A182 F316L Chemical Composition

C Mn P S Si Ni Cr Mo
0.03 2 0.045 0.03 1 10-14 16-18 2-3

ASTM A182 F316L Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 170 (Mpa) 35 (%)

SW Coupling Weight Chart

Socket Weld Steel Pipe Coupling Class 3000 3 / 4 Inch Size ASTM A182 F316L

Stainless Steel Coupling

Marking and Packing

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed SS 316L Socket Weld Coupling into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as size, material , pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the chemical Compostion of SS 316/316L

Why Choose Us?

  • Reasonable price
  • Good quality
  • Fast delivery
  • Safe package
  • Offer in time
