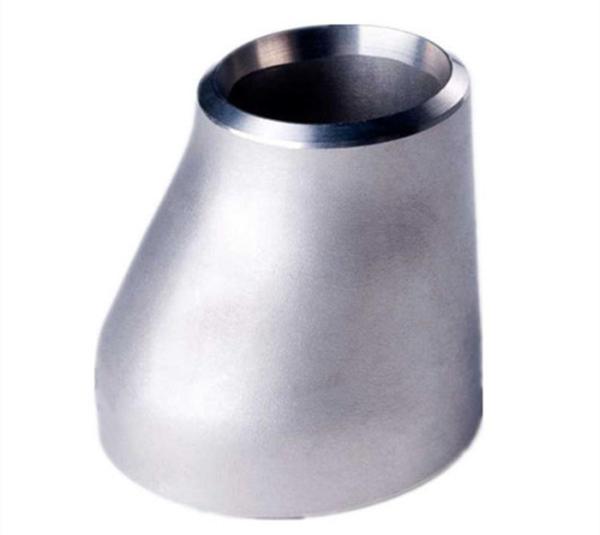

High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer
Specifications
Brand Name :
ZZ
Model Number :
ASTM A403 WP304
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Connection :
Butt Weld
Shape :
Round
Standard :
ANSI, ASME B36.19
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Packing :
Plastic Foam, Wooden Cases, Pallets
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Stainless Steel Eccentric Reducer 12" x 8" Sch 10S Seamless SS 304 ASME B36.19

Stainless Steel Eccentric Reducer

High quality eccentric reducer is supplied in verious dimensions and best price, those stainless steel fittings are manufactured in accordance with ASME B36.19.

Stainless Steel 304 pipe fittings have excellent corrosion resistance and demanded highly in chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills due to their versatility and excellent weld-ability.

12 x 8 Reducer Dimensions

High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

Size 1/2" - 60"
Wall Thickness Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard ASME B36.19
Types Seamless Reducer, Welded Reducer, Concentric Reducer, Eccentric Reducer
Stainless Steel ASTM A403 WP304/304L,WP304H,WP316/316L,WP310,WP317,WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

How to Calculate Pipe Reducer Weight

  • Formula: 0.02466 × S ×[ (D+d)/2-S] × H / 1000
  • S: Wall thickness
  • D: Outside diameter of the larger end
  • d: Outside diameter of the small end
  • H: End to end dimension

Steel Pipe Reducer Weight

High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

Package of SS 304 Eccentric Reducer

High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped pipe fittings with plastic foam.
  • Packed Stainless Steel A403 WP304 Pipe Reducer into wooden cases or pallets.
  • Tagged labers on the outside of the package for easy indentification.

Inspection of Sch 10S Pipe Reducer

High Thickness Steel Pipe Reducer Fittings , SS304 Flanged Eccentric Reducer

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, end to end.
  4. Test the chenical compositon of SS 304.

Chemical Composition of SS 304

Grade C Mn P S Si Ni Mo Cr
SS304 0.08 2 0.045 0.03 1.0 8-11 - 18-20

Mechanical Properties of SS 304

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%)
SS304 515 205 20

Advantages of Stainless Steel Buttweld Fittings

  • Attractive Price
  • Good Quality
  • Short Delivery
  • Safe Package
  • Reliable Shipment
