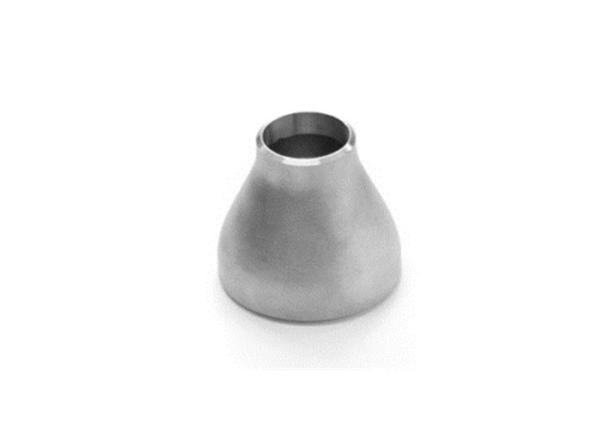

1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
1/2 - 60 Butt Weld Pipe Fittings Concentric Reducer Nickel Alloy UNS 2200 ASME B16.9
Specifications
Brand Name :
ZZ
Model Number :
Nickel Alloy Steel
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets.
Material :
UNS 2200
Standard :
ANSI, ASME B36.19, B16.9
Item :
Concentric Reducer
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Butt Weld Pipe Reducer Concentric Nickel Alloy UNS 2200 ASME B16.9 Pipe Fittings

ASME Buttweld Pipe Fittings Manufacturer

Standard ASME / ANSI B16.9, SY/T0510, HG/T21631, SH3408, GB/T13401, GB/T12459
Diameter NPS 1/2 to NPS 48, DN15 to DN1200
Wall Thickness Sch 10S, 20, STD, 40 XS, 80, 120, 160, XXS
Type Concentric Reducer and Eccentric Reducer
Stainless Steel Reducer ASTM A403 WP304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347
Carbon Steel Reducer ANSI / ASTM A234 WPB, A420 WPL3,WPL6, WPL9,
A860 WPHY42, WHPY52, WPHY60, WHPY65, WPHY70,
Alloy Steel Reducer ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel Reducer S 31803, S 32205, S 32550, S 32750, S32760
Copper Nickel Reducer ASTM B151 UNS C70600 / C70610 / C70620

Steel Pipe Reducer Weight

This weight chart is both suit for concentric and eccentric reducers. This chart only contains reducers from 1/2" to 24", more information pleasesend us emails.

1/2

How to Calculate Pipe Reducer Weight

  • 0.02466 × S ×[ (D+d)/2-S] × H / 1000
  • S: Wall thickness
  • D: Outside diameter of the larger end
  • d: Outside diameter of the small end
  • H: End to end dimension

Nickel Alloy 200 Properties

Grade Specification

Standard UNS WERKSTOFF NR. EN JIS BS
Nickel 200 N02200 2.4066 Ni 99.2 NW 2200 NA 11

Chemical Composition

Ni C Mn Si Fe S Cu
99 min 0.15 max 0.35 0.1 0.4 0.01 0.25

Mechanical Properties

Tensile Strength Yield Strength Elongation Density
462 148 45 8.9 g/cm3

Concentric Reducer Quality Assurance

Infactory Inspection

Check the appearance without flaws.

Ensure the dimensions in tolerance.

Make sure the material is qualified.

Concentric Reducer Tolerance

​1/2

Application of Nickel Alloy Pipe Fittings

Sea Water Equipment

Chemical

Off-Shore Oil Drilling Companies

Power Generation

Gas Processing

Pulp and Paper Industry

Why choose us Buttweld Pipe Fittings

Raw material: Sufficient reserves and diverse

Dimensions: large options and accurate

Manufacturer Standard: ASME, DIN, JIS,

ISO Certified Manufacturer

MTC BS EN10204-3.1 issued

Large inventory for materials and products
