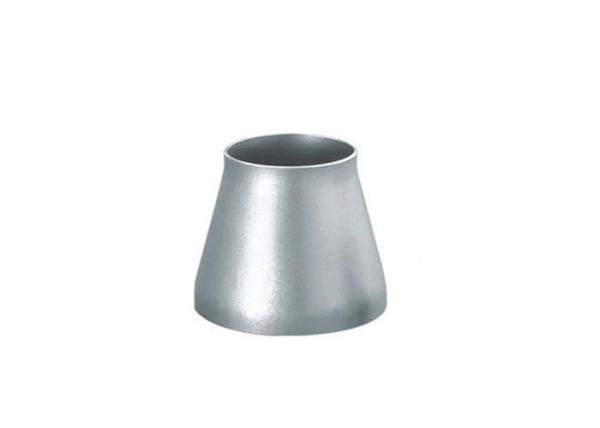

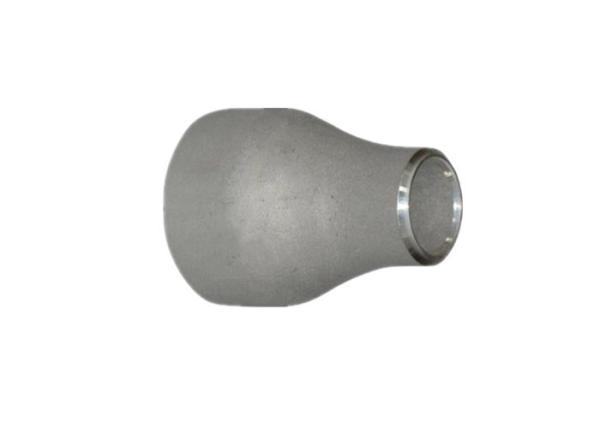

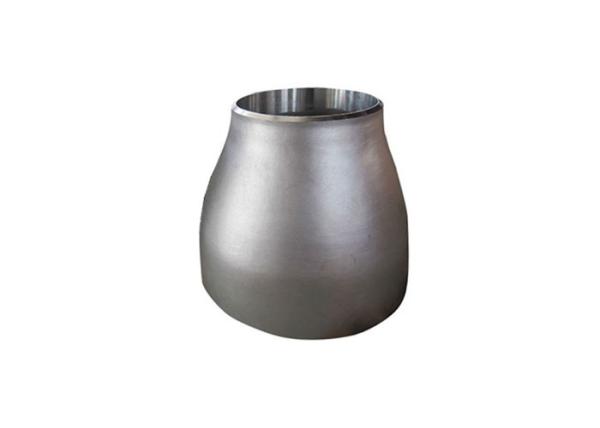

Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2 - 48
Specifications
Brand Name :
ZZ
Model Number :
Nickel Alloy
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Nickel 200
Type :
Concentric Reducer
Size :
NPS 1/2" - 48"
Thickness :
Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard :
ASME B16.9
Connection :
Buttweld
Description

Concentric Reducer Nickel Alloy

Nickel 200 reducers has good mechanical properties and excellent corrosion resistance to alkalis. It also has good electrical, thermal and magnetostrictive properties. Zizi is manufacturer of nickel pipe fittings and supply various buttweld pipe fittings in customized dimensions.

Buttweld Pipe Fittings Manufacturer

Supply Range

  • 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow
  • Equal Tee, Reducing Tee
  • Concentric Reducer, Eccentric Reducer
  • Pipe Cap
  • Stud End

Dimension Range

Size NPS 1/2" - 48"
Wall Thickness Sch10S, 20S, 40S, STD, XS, 80S, 100, 120, 140, 160, XXS
Standard ASME B16.9, B36.19
End Type BE, PE
Surface Galvanized, Black Primer, PE Coating, 3PE

Materials

1. Stainless Steel:
ASTM A182 F304/ 304L, F306/ 316L, F309S/309H, F310, F317, F321, F347, F347H, F454L ASTM A312/A403 TP304, TP304L, TP316, TP316L

2. Duplex & Super Duplex Steel:
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

3. Carbon Steel:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

4. Alloy Steel:
ASTM / ASME A 182 F1, F5, F9, F11, F12, F22, F91

ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

5. Nickel and Copper Alloy:

NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276, C 70600, C71500

Steel Pipe Reducer Weight Calculation

Weight Chart:

Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2

Formula:

  • Weight Formula: 0.02466 × S ×[ (D+d)/2-S] × H / 1000
  • S: Wall thickness
  • D: Outside diameter of the larger end
  • d: Outside diameter of the small end
  • H: End to end dimension

Nickel 200 Chemical Composition

Ni C Cu Fe Mn S Si
99 min 0.15 max 0.25 max 0.4 max 0.35 max 0.01 max 0.35 max

Steel Pipe Reducer Inspection

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as size, material grade, pressure, heat no.
  3. Measure the size. Such as diameter, thickness, end to end.

Concentric Reducer Pipe Fitting Nickel 200 Buttweld Pipe Fittings Nps 1/2
