1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
1/2 - 24 Forged Steel Flanges ASME B16.5 150LB Slip On High Pressure Pipe Flanges
Specifications
Brand Name :
ZZ
Model Number :
ASTM A182 F22
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
10-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Size :
1/2" - 24"
Standard :
ANSI, DIN, JIS, BS, ASME
Pressure :
150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Surface :
Electro Galvanized, Black Primer, PE Coating, Anti-rust Oil
Material :
Stainless Steel,Carbon Steel,316,alloy steel
Flange Face :
RF, FF, RTJ
Description

150LB Slip On Flange ASTM A182 F22 Forged Steel Flanges ASME B16.5

Slip On Flange ASME B16.5

Slip on flange, shorted as SO Flange, is designed to slip over the outside of pipe and fittings and connected with another flanges. It is easier to align than weld neck flanges. SO flange is ideal for low pressure applications and generally provided with raised face.

Zizi is manufacturer and supplier of forged steel pipe fittings, we produce ASME B16.5 slip on flanges in different sizes and materials.

Pipe Flange Specification

Size 1/2" - 24"
Pressure 150#, 300#, 600#, 900#, 1500#, 2500#
Standard ASME B16.5, ASME B16.47, B16.36
Seal Types Raised Face, Flat Face, RTJ
Stainless Steel ASTM A182 F304/304L, F316/316L, F321, F317,F310, F347
Duplex Steel ASTM A182 F51, F53, F55
Carbon Steel ASTM A105N, ASTM A350 LF2/LF3
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91

Flange Types

Weld Neck Flange, Socekt Weld Flange, Threaded Flange, Blind Flange, Spectacle Blind, Slip On Flange, Ring Joint Flange, Plate Flange.

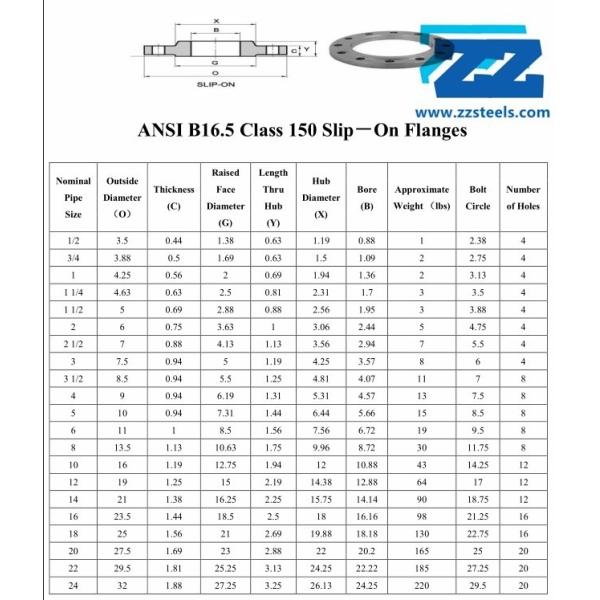

Slip On Flange Dimensions 150#

1/2

Slip On Flange Weight

This chart covers all pressure ratings slip on flange weight from 1/2" to 24".

1/2

ASTM A182 F22 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.035 0.04 0.5 0.8-1.25 0.044-0.65

ASTM A182 F22 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 205 (Mpa) 20 (%)

Slip On Flanges vs Weld Neck Flanges

The differences between them are focused on

1. Welding forms: Weld neck flange can be radiographed but slip on flange can not.

2. Nominal pressures: Nominal pressure of Weld neck flange is 1-25 MPa, while slip on flange is 0.6-4 MPa.

3. Connection Mode: Weld Neck flange is butt welded with pipes and slip on flange usually is fillet.

Forged Flange Manufacturer

Package

  1. Our workers will do marking with name, pressure, size, seal, schedule, material and heat No..
  2. Use plastic foam to wrap A182 F22 slip on flanges after done anti-rust oil.
  3. Pun flanges into wooden cases or pallets.
  4. Stick case marking on the outside of wooden case for easy indentification.

Inspection

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as type, size, material code, pressure, heat No.
  3. Measure the size. Such as outside and raised face diameter,thickness of flange.


Advantages

  • Price
  • Qualtiy
  • Service
  • Delivery
  • Package
  • Responable
