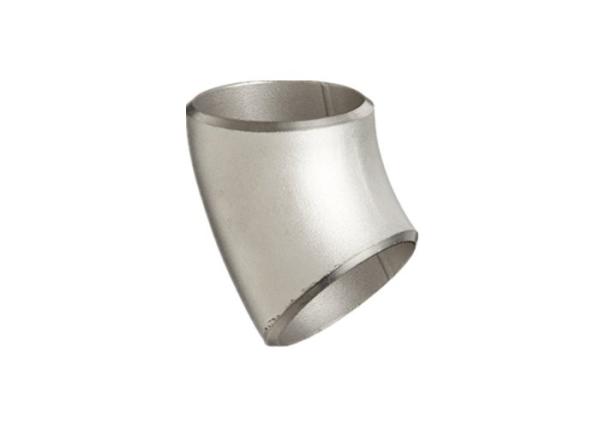

Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Hastelloy C276 45 Degree Elbow Butt Weld Long Radius Elbow 1/2 - 60 Size
Specifications
Brand Name :
ZZ
Model Number :
Hastelloy
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Hastelloy C276
Form :
45 Degree Elbow
End :
PE
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard :
ANSI, DIN, ASME B16.9
Description

Hastelloy C276 Elbow

Hastelloy C276 (UNS 10276) elbow is a nickel based alloy steel pipe fitting with high corrosion resistance, so it is widely used in may industrial application including but not limited to chemical, oil and gas, waste treatment, pharmaceutical and food processing.

Butt Weld Pipe Fittings Supply Range

Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317, WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Nickel Alloy NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C 276,

45 Degree Elbow Dimension Chart

Nominal Diameter Outside Diameter at Bevel Center to End
45°Elbow
B
DN NPS SeriesA SeriesB Long Radius
15 1/2 21.3 18 16
20 3/4 26.9 25 19
25 1 33.7 32 22
32 1 1/4 42.4 38 25
40 1 1/2 48.3 45 29
50 2 60.3 57 35
65 2 1/2 73 76 44
80 3 88.9 89 51
90 3 1/2 101.6 - 57
100 4 114.3 108 64
125 5 139.7 133 79
150 6 168.3 159 95
200 8 219.1 219 127
250 10 273 273 159
300 12 323.9 325 190
350 14 355.6 377 222
400 16 406.4 426 254
450 18 457.2 478 286
500 20 508 529 318
550 22 559 - 343
600 24 610 630 381
650 26 660 - 406
700 28 711 720 438
750 30 762 - 470
800 32 813 820 502
850 34 864 - 533
900 36 914 920 565
950 38 965 - 600
1000 40 1016 1020 632
1050 42 1067 - 660
1100 44 1118 1120 695
1150 46 1168 - 727
1200 48 1220 1220 759

45 Degree Elbow Calculate Fomula

  • W=0.0216 * S( D – S ) * R / 1000
  • W = Weight (kg/piece)
  • S = Thickness Schedule
  • D = Nominal Diameter
  • R = Radius

UNS 10276 Properties

Chemical Composition, %

Ni Mo Cr Fe W Mn C
Bal 15-17 14.5-16.5 4-7 3-4.5 1 0.01

Mechanical Properties

Tensile Strength Yield Strength Elongation
690 MPa 283 MPa 40 %

Hastelloy C376 Advantages

Resistant to corrosion such as acids, seawater, brine and many chemical media

Resistant to pitting, stress corrosion cracking and high temperature

Great welding ability

Buttweld Pipe Fittings Manufacturer

Attentive Service

Best Price: Offer the best price on the market

Fine Package: Anti-rust Oil, Plastic Bag, Wooden Case or Pallet

Fast Delivery: 10 Days are ready for shipping

High Quality

Strict Inspection

Third Party Inspection

We are ISO certified steel pipe fittings manufacturer, we also have many other certifications for our products.
