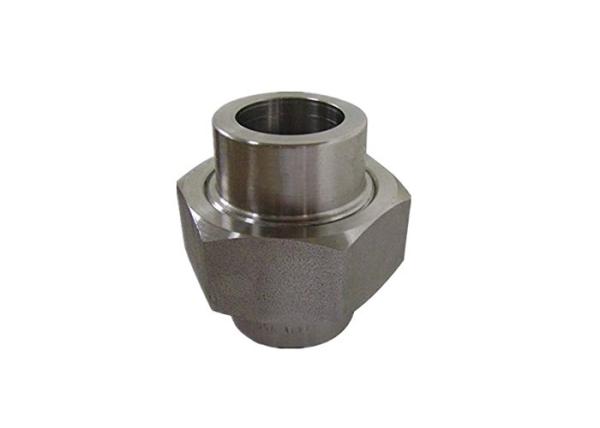

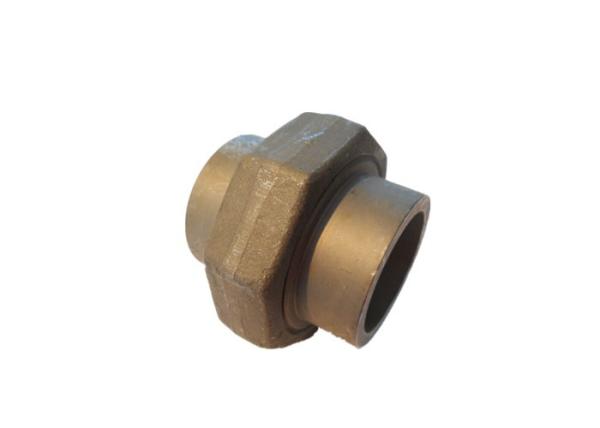

MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material
Specifications
Brand Name :
ZZ
Model Number :
ASTM A105N
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases
Material :
Carbon Steel A105N
Connection :
Socket Weld
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3",
Standard :
ASME/ANSI B16.11, BS3799, MSS-SP-83
Pressure :
Class 6000
Technics :
Forged
Description

MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N

A105N Pipe Union

Zizi is leading manufacturer and exporter of carbon steel pipe unions. Forged pipe unions is used for connecting pipes by socket welding or threaded. It consists of three parts which are detachable for each part, therefore, it is widely used for pipe system that need often maintenance and disassembly. A105N pipe union is low cost and high quality and very popular in various industries.

Socket Weld Union Supply Range

Size 1/8" to 3" / DN6 to DN80
Pressure Rating Class 3000, 6000, 9000
Standard

ASME/ANSI B16.11, BS3799, MSS-SP-83
Surface

Anti-rust Oil or Galvanized, Black
Technics Forged
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105/A105N, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material

ASTM A105N Forged Fittings

Chemical Composition

C Mn P S Si Ni Cr Mo
0.35 0.6-1.05 0.035 0.04 0.1-0.35 0.4 0.3 0.12

ASTM A105N Mechanical Properties

Tensile Strength Yield Strength Elongation HB
485 (Mpa) 250 (Mpa) 22 (%) 187

Heat Treatment

Normalizing Heat Treatment. They will protect with anti rust oil before delivery.

Available Products

Forged Fittings: Threaded Fittings, socket weld fittings, 45 degree elbow, 90 degree elbow, equal tee, reducing tee, half coupling, full coupling socket weld union, threaded union, socket weld cap, threaded cap, threaded nipple, hex bushing, hex plug.

Forged Flanges: weld neck flange, socket weld flange, threaded flange, blind flange, spectacle blind, slip on flange, ring joint flange, plate flange, raised face flange, flat face flange.

Carbon Steel Union Weight Chart

MSS SP-83 Forged Pipe Fittings Socket Weld Union Class 6000 ASTM A105N Material

Package of A105N Socket Weld Union

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped A105N Socket Weld Union with plastic bag.
  • Packed socket weld unions into cartons and wooden cases.
  • Tag lables for easy indentificate.

Features of Pipe Union

Easy Intallation and Maintenance

Low Cost

Fine Structure

Large Application

One Step Service
