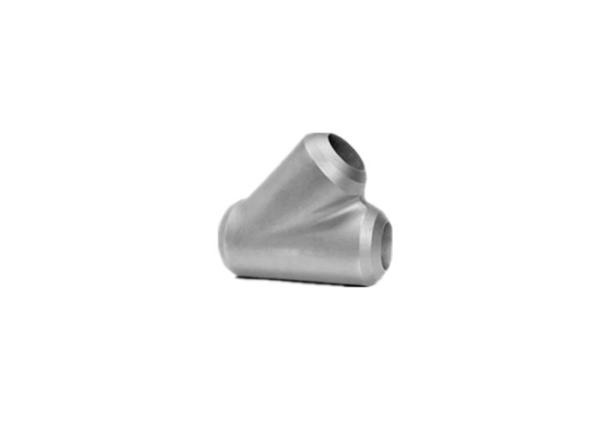

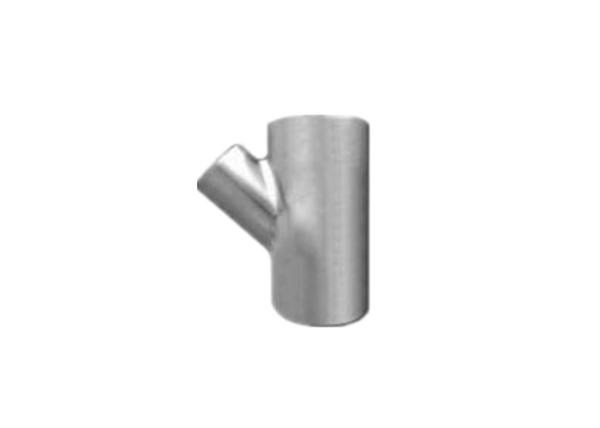

Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel 316
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotation
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
50000 Pieces per Month
Delivery Time :
5- 20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP316
Form :
45 Degree Lateral Tee
Size :
1/2" - 60"
Standard :
ANSI, DIN, ASME B16.9
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Surface :
Sand Blasting and Black Primer, Hot Dip Galvanized, PE Coating
Description

Stainless Steel 316 45 Degree Lateral Tee Buttweld Tee Pipe Fittings Sch 80s

Butt Weld Tee Fittings

Zizi offers buttweld tee fittings equal tee and reducing tee, lateral tee, cross tee in various dimensionss and materials. Lateral tee provides 45 degree branches which has similar or smaller diameter than the run pipe. It available in buttweld end, socket weld ends and threaded ends. Buttweld laterial tee is the first choice for conveying pipelines and the dimension range is very large.

Dimensions for 45 ° Lateral Tees

Diameter Range: NPS 1/2" - 48" / DN15 - 1200

Wall Thickness: Sch10S, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS

Standard: ASME B16.9, B36.19

End: Plain End, Beveled End

Form: Seamless, Welded

Type: Straight Lateral Tee, Reducing Lateral Tee

Product Range: Elbow, Tee, Lateral Tee, Cross, Reducer, Cap, Stub End

Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee

Materals For Buttweld Pipe Fittings

Stainless Steel

ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317, WP321

Duplex Steel

ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760

Carbon Steel

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70

Low Temp Carbon Steel

ASTM A420 WPL3, WPL6, WPL9

Alloy Steel

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Coatings

  • Sand Blasting
  • Black Primer
  • Hot Dip Galvanized
  • PE Coating
  • As Requirement

Stainless Steel pipe fittings ususally provide with anti rust oil or PE/3PE Coating.

Stainless Steel 316 Properties

Chemical Composition of A403 WP316

C Mn P S Si Ni Cr Mo
0.035 2 0.045 0.03 1 10-14 16-18 2-3

Mechanical Properties of SS 316

Tensile Strength Yield Strength Elongation
520 (Mpa) 205 (Mpa) 30 (%)

Heat Treatment

Stainless Steel fittings are treated by Pickling and Solution.

Stainless Steel Lateral Tee Weight

Stainless Steel 316 Butt Weld Tee Pipe Fittings Sch 80s 45 Degree Lateral Tee

SS 316 Pipe Fittings Delivery

Delivery port: Shanghai, Tianjin, Qingdao

Lead time: 10 days are ready to deliver

Shipment: LCL, 20GP, 40GP, Air, Courier

Document: CI, PL, CO, BL, MTC

Certificate: CE, ISO, TEST REPORT

Buttweld Fittings Export Country

Asia: Vietnam, Singapore, Cambodia, Malaysia, Thailand

Africa: Ghana, Nigeria, South Africa, Kenya, Madagascar

Middle East: Saudi Arabia, Qatar, Israel, Egypt

Latin America: Uruguay, Peru, Chile, Brazil, Ecuador

Oceania: Papua New Guinea, Australia, New Zealand
