1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
1/2 - 60 Size Stainless Steel Pipe Fittings Seamless End Cap High Strength
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A403 WP316, WP304
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Form :
Seamless Pipe Cap, Welded Pipe Cap, End Cap
Standard :
ANSI, DIN, ASME B36.19
Application :
Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical
Description

Stainless Steel Pipe Cap SS 304, SS 316, Seamless End Cap ASME B16.9

Stainless Steel Pipe Cap Supplier

High quality stainless steel pipe fittings supplier Zizi provides SS 304 and SS 316 pipe elbow, tee, reducer, cap, coupling, nipple, union and plug in any sizes.

Pipe cap is used to stop the flow by block off the end. It is available in buttweld end, socket weld end and threaded end. The latter two are forged fittings, and buttweld cap is wrought. BW caps have large dimension range than forged type, it ends is further divided into plain and beveled. And according to the different technique, it also has seamless cap and welded cap.

Buttweld Pipe Cap Dimensions

Standard ASME/ANSI B36.19, B16.9
Size 1/2" - 60"
Thickness Sch 10S, 20S, STD, 40S, 80S, 100, 120, 140, 160, XXS
End Type BE and PE
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317, WP321
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Stainless Steel 316 VS Stainless Steel 304

No matter among buttweld pipe fittings nor forged pipe fittings, the most popular and extensive used stainless steel is grade 316 and grade 304. Both are Austenitic stainless steel with excellent corrosion resistance and high strength. However, the specification for forged fittings is ASTM A182, while for buttweld fittings is ASTM A403.

Compared their chemical composition, we konw ASTM A403 WP316 contains Mo while A403 WP304 not has. This is an element that added to help resist corrosion to chlorides, so SS316 corrosion resistant better.

Chemical Composition of Stainless Steel 316

C Mn P S Si Ni Cr Mo
0.035 2 0.045 0.03 1 10-14 16-18 2-3

Mechanical Properties of Stainless Steel 316

Tensile Strength Yield Strength Elongation
520 (Mpa) 205 (Mpa) 30 (%)

Chemical Composition of Stainless Steel 304

Grade C Mn P S Si Ni Mo Cr
SS 304 0.08 2 0.045 0.03 1.0 8-11 - 18-20

Mechanical Properties of Stainless Steel 304

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%)
SS 304 515 205 20

Heat Treatment

Both SS316 and SS304 are treated by Pickling and Solution.

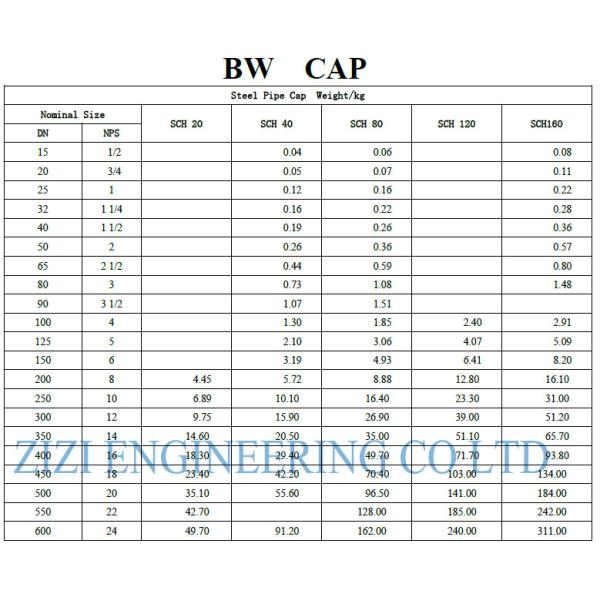

Stainless Steel Pipe Cap Calculation

The dimension of pipe cap is very extensive and diverse, so we bsed on our manufacture experience, we give you commonly used pipe cap's weight within 24 inch.

1/2

Seamless Pipe Cap

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Anti rust oil and plastic foam for the first.
  • Packed small dimension pipe caps into wooden. Pallets for caps more than 20 inch.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

  • Visual the surface. Including marking and appearance.
  • Measure the size of every part. Such as diameter, thickness, height of end to end.
  • Check chemical composition of material.

​Why Choose Us

Complete products

Various Materials

Customized Sizes

No Limit for Quantity

Fast Delivery

ISO Certified
