Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2 - 60 Size
Specifications
Brand Name :
ZZ
Model Number :
ASTM A106B
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Carbon Steel A106
Technique :
Seamless
Standard :
ANSI, DIN, ASME B16.9
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Radius :
3D
Description

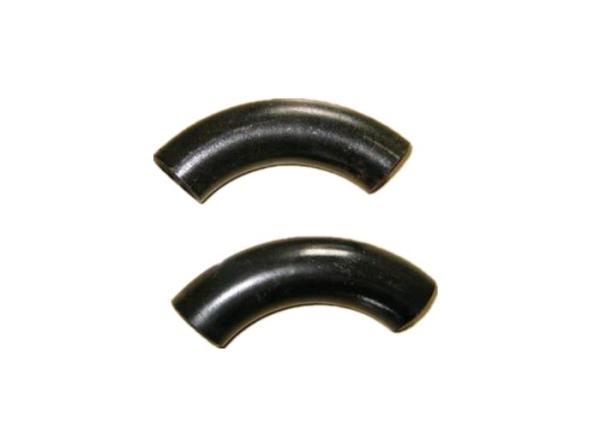

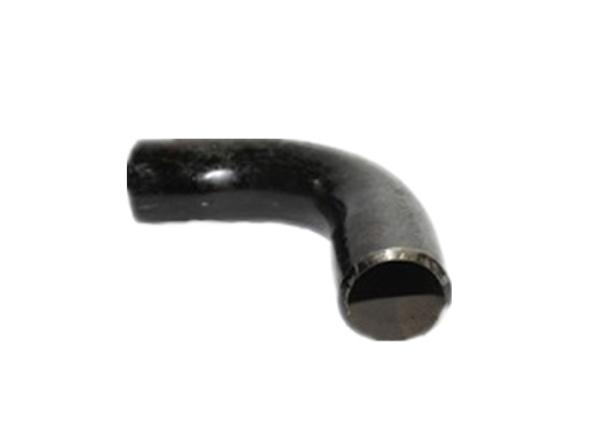

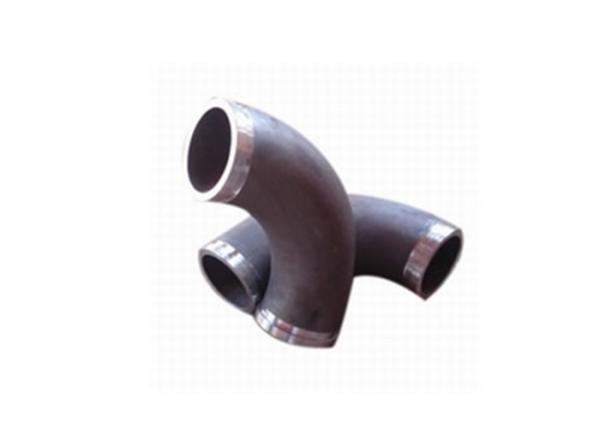

Hot Bend A106 B 90 Degree Elbow R=3D Carbon Steel Buttweld Pipe Fittings

A106 B Pipe Fittings

A106 B is a commonly used carbon steel materials for pipes, buttweld fittings and swage nipples. It is suitalbe for bending, flanging, welding and forming. A106 B pipe elbow usually is seamless, it is largely used in high temperatures and pressure pipe systems.

Carbon Steel Elbow Dimensions

Size NPS 1/2" - 48" / DN 15 - 1200
Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Radius SR, LR, 3D, 4D, 5D…… As Required
Standard ASME B16.9, HG/T21635, HG/T2163, SY/T0510
Product 45 degree Elbow, 90 degree Elbow, Equal Tee, Reducing Tee, Concentric Reducer, Eccentric Reducer, Pipe Cap, Stub End

Stainless Steel

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347

Carbon Steel

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3 / 6 / 9

Alloy Steel Cap

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Duplex Steel

ASTM A815 UNS S 31803, 32205, 32550, 32750, 32760

Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2

ASTM A106 B Properties

Chemical Composition, %

C Mn P S Ni Cr Mo Cu
0.25 0.95 0.05 0.045 0.4 0.4 0.15 0.4

Mechanical Properties

Tensile Strength Yield Strength Longitudinal Transverse
330 305 35 25

Heat Treatment

Normalizing. A106 B elbow can be hot finished or cold drawn.

Coating

Galvanized, Black Primer, PE, 3PE Coating

How to Calculate Weight of 90 Degree Elbow

W=0.0387 * S( D – S ) * R / 1000

W = Weight (kg/piece).

S = Thickness Schedule.

D = Nominal Diameter.

R= Radius.

Hot Bend A106 B 90 Degree Elbow Carbon Steel Pipe Fittings Seamless 1/2

Hot Bend Elbow Delivery

Quality​

1. Inspection

  • Surface Inspcetion. Check the marking and appearance
  • Dimension Inspection. Measure the dimensions of diameter, center to end.

​2. Third Party Inspection

  • BV, SGS, LR, DNV, ABS and stamp mill test certificate.

3. Certificate

  • CE, ISO, TEST REPORT

Package

Plastic Film, Wooden Case, Wooden Pallet.

Delivery port

Shanghai, Tianjin, Qingdao

Lead time

15 days are ready to deliver

Shipment

LCL, 20GP, 40GP, 40HQ, Air, Courier

Document

CI, PL, CO, BL, MTC

Application

  • Oil tank
  • Power industry
  • Marine industry
  • Chemical industry
  • Oil & gas industry
  • Pipeline engineering
  • Food processing industry
