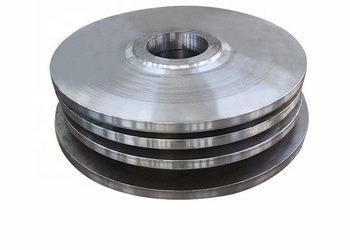

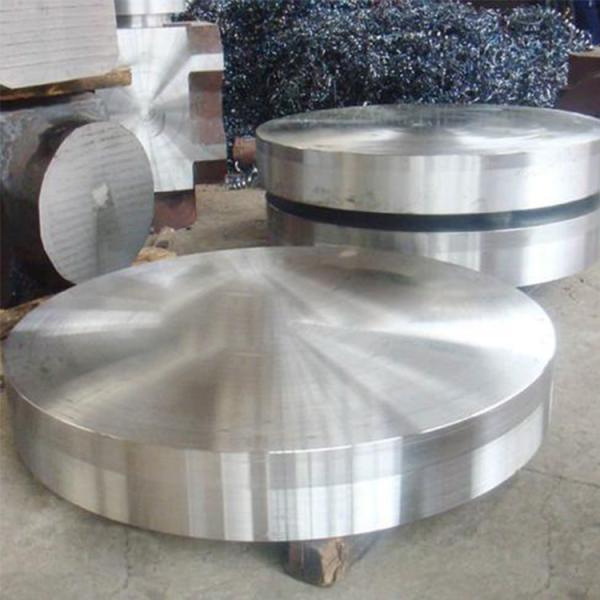

S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
Specifications
Place of Origin :
Jiangsu
Brand Name :
Golden
Certification :
ISO9001,UL,CE
Model Number :
Customized
MOQ :
1 pc
Price :
30usd to 1500usd
Packaging Details :
Box Or Wooden Package
Delivery Time :
7-25 working days
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
3000 tons/month
Tube Sheet :
API 6A
Forgings :
EN , ASTM,
Grade :
F51, S31803 F60, S32205 F53, S32750
High Light :
round steel discs, round metal discs
Forged Disc :
ASME
Name :
Forged Disc
Description

S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc

Forging un S32750 2205 Forging Disc /Die Forging a350 lf2 Steel Roolling Steel Disc

Introductions

Large-diameter disc also called flange, which is one of the flanges, widely used and popularized in the machinery industry, chemical industry, wind power industry and sewage treatment industry, which has been praised and favored by users. The production process is divided into rolling and forging, the material usually use carbon steel, stainless steel or alloy steel.Our company can produce different type large flange accroding to the customer's drawing and requirments,if you have any questions,please contact with us freely

Material:

Double Stainless Steel: 1.4541 1.4462, F51, S31803; F60, S32205; F53, S32750

Stainless Steel: F304L,F316L, F312L

Hastelloy: Inconel 625 & Monel K500

Carbon Steel, ASTM A105, ASTM A350 LF2 : ASTM A694 F60/65 S355J2G3

Standard: EN,DIN,ASME,ASTM,ASME,API, BS,JIS, ANSI,UNI,GOST

Melting process: EF+LF+VD; VOD, AOD, ESR

Process: Raw material inspection →Cutting→ Inspection → Preheat → Forging → Heat treatment → Inspection → Rough machining → NDT → According to material Tech. Heat treatment →Testing → Finishing machining →NDT →Inspection → Packing→ Delivery.

Heat Treatment:

Carbon Steel treatment:N or N+T

Alloy Steel treatment: N, A or Q+T

Stainless Steel treatment: S

Parameters

Material
Carbon steel,Alloy steel,42CrMo,35CrMo,Q345
Weight
Max 1000kg per piece
Structure
Forging, plate
Type of flange
large diameter flange, welding flange
Heat treatment
Quenching and tempering
Process
forging, rough machining, QT, finish machining
Main equipments
6m.4m CNC planer type milling machine, VMC850, 5m CNC vertical lathe,6m CNC horizontal boring machine etc.
Precision of gear
can up to 0.05mm
Inspection
Raw material inspection, UT,physical property test,dimension inspect
Application
boiler and pressure vessel, petrochemical industry, power plant, ship manufacture and mining machinery

S32750 Forging Disc Astm A350 Lf2 Rolling And Forging Steel Disc
