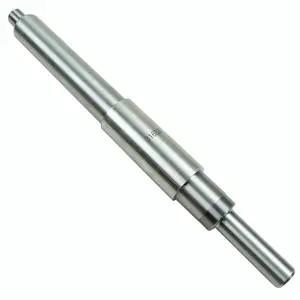

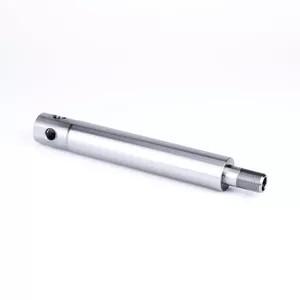

ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod
Specifications
Place of Origin :
Jiangsu
Brand Name :
Golden
Certification :
ISO9001,UL,CE
Model Number :
Customized
MOQ :
1 pc
Price :
10usd to 1500usd
Packaging Details :
Box Or Wooden Package
Delivery Time :
8-25 working days
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
3000 tons/month
Forging Tolerance :
+/-0.1mm
Model NO. :
sae1045 sae4140 steel piston rod
Coating :
Oil Protected
Technology :
Forged
Transport Package :
Wooden Pallet or as Your Requirement
Size :
1/4′′ to 500′′
Description

ASME 1045 Bright Steel Round Bar Hard Chromed 1045 Hydraulic Piston Rod

ASTM Sae1045 Aisi4140 Hard Chrome Plating Bright Steel Round Bars

Detailed Description:

Name & DescriptionForging Handling Capacities Quantity
6000 Tons Free Forging PressMax. Single Forging in 45 Tons1
5000mm Diameter Rolling Forging Machine Max. Single Forging in 16 Tons1
800 Tons Free Forging Press Max. Single Forging in 7.5 Tons 1
60 Tons Forging Handling Operator Max. Single Forging in 45 Tons 1
10 Tons Forging Handling Operator Max. Single Forging in 7.5 Tons 1
80 Tons Crane Max. Single Ingot in 80 Tons 1
60/30 Tons Crane Max. Single Ingot in 60 Tons 1
30/10 Tons Crane 30/10 Tons 5
Trolley Heat Furnace 5000*1500*1200 mm 3
Trolley Heat Furnace 8000*2000*1600 mm 3
Trolley Heat Furnace 6500*1500*1200 mm 4
Vertical Heat Furnac Ø 2500*10000 mm2
Total Forging Equipment Quantity24

Item Process Facility Inspection items Standard

01		 Steel material
inspection		 Chemical composition
(EF+LF+VD)		 Material standard
surface Ingot inspection
specification
Ingot type and weight Material standard
02 Material
store		 Division put warehouse management
1 Heat Heat furnace Temperature/Time Heating process
specification
Forging production
procedure
2
↓		 Forging Press Reduction ratio,forging
temperature,deformation,
Surface and dimensions		 Forging process card
Forging procedure
3
↓		 Heat treatment heat treatment
furnace		 heat treatment charts 1st heat-treatment card
Forging procedure
4
↓		 Rough
inspection		 Dimensions, apperance,
Mark		 Inspection specification
Forging procedure
5
↓		 Rough UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation		 UT standard or
customer's technical
requirements
6
↓		 Saw cutting Saw machine Dimension IQC and forging
7
↓		 rough turning turning-lathe Dimension,appearance Rough machining
drawing
8
↓		 UT UT equipment Single defect, concentrated
defects bottom wave attenuation		 UT standard or
customer's technical
requirements
9
↓		 Q+T
heat treatment		 heat treatment
furnace		 heat treatment charts Heating process
specification
10
↓		 Sampling or machining machining tool rough machining drawing
sampling drawing		 sample machining
drawing
11
↓		 mechanical
property test		 tensile testing machine/
impact testing machine		 ambient temperature,humidity,
Test temp.Sample dimension,
test method		 Standard
technical specification
12
↓		 finish
machining		 machining
tool		 Dimension,appearance finish machining drawing
13
↓		 UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation		 UT standard or
customer's technical
requirements
14
↓		 MT MT equipment Magnetic particle
indication		 Test standard or
Technical requirements
15
↓		 Mark Steel seal marking content Product standard
Technical requirements
Forging process
16
↓		 Final
inspection		 Appearance, dimension, mark
acceptance inspection		 Product inspection
specification
Product standard
P.O.
17 Protection/
package		 Blasting
Blasting equipment		 appearance
coating thickness		 Product standard
Technical requirements

1) Product Name: Hard chrome steel piston shaft bar
2) Material: 4130, 4140, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 9Cr2Mo, 9Cr3Mo, 60CrMoV etc.
3) Max weight: 60ton.
4) MOQ: 20ton.
5) FOB Port: Shanghai Port, China.
6) Delivery Time: 60ton in 30 days.
7) Delivery Condition: Rough Machined, Heat Treated, Fine Machined + EN10204: 3.1B
8) Payment: 30% T/T in advance, Balanced C. A. D.; Or 100% L/C.
***
Mill Frequently Used Steel Materials:
1) Wind Power Shaft: 42CrMo4V, 34CrNiMo6; Wind Power Flange: S355NL, C22, 16Mn, 20Mn, 42CrMo, F304.
2) Forged Pipe Fittings: SA335 SA182 Gr. F1, Gr. F5, Gr. F11 CL2, Gr. F22 CL3, SA350 Gr. LF1, Gr. LF2, Gr. LF3.
3) Pressure Vessel Forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH.
4) Shaft Related Forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130, 4140.
5) Gear Related Forgings: 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo.
