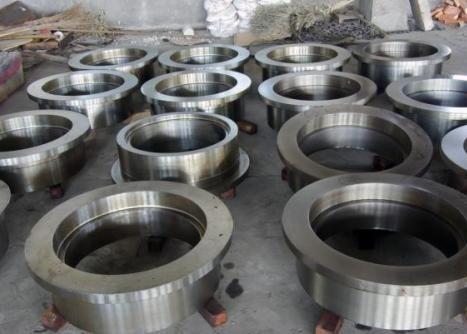

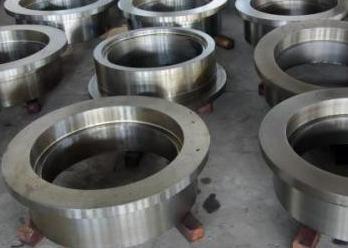

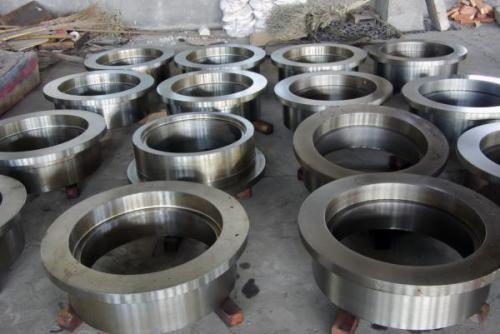

Hot forging aisi4140 aisi4340 milling surface steel ringlike products

Comapny Information:

We are a leading company for providing all kinds of forging steel products more than 10 years. Our company located in Wuxi Jiangsu, which is near the Shanghai port.The heavy forging: forged ring, fogred shaft, steel roller, steel flange, or gear is widely used for various industries. For example: Metallurgy, mining, power station and so on. The manufacturing equipment is 185MN or 100MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of ASTM, EN, DIN, JIS, ASME or GB etc.
The product can be provided as per your drawing or specified requirements.

Product Description

Product features of flange/gear coupling
1. High Transmission Efficiency Can Reach 99.7%
2. High Loading Capacity: With the same external dimension, the loading capacity is 15%~20% averagely higher than that of straight-tooth coupling
3. Large Angular Compensation: The maximum allowable angular misalignment is 1.5°, 50% higher than that of straight-tooth coupling
4. More Scientific Gear Tooth Design: It avoids local stress concentration caused by straight tooth edge extrusion, and tooth surface friction is eased at the same time.
5. Gear tooth of external gear sleeve is horn-shaped, which makes it easy to install and dismantle.
6. Long Service Life: The internal and external gear teeth are made of high strength alloy steel. After quenched-tempered heat treatment, gear teeth rigidity and wear resistance are improved.

Related Product

Our company specialize in producing all kinds of internal and external gear, high precision spline shaft and gear shaft. We are looking forward to the cooperation with you, and we believe that we will be your ideal choice.
