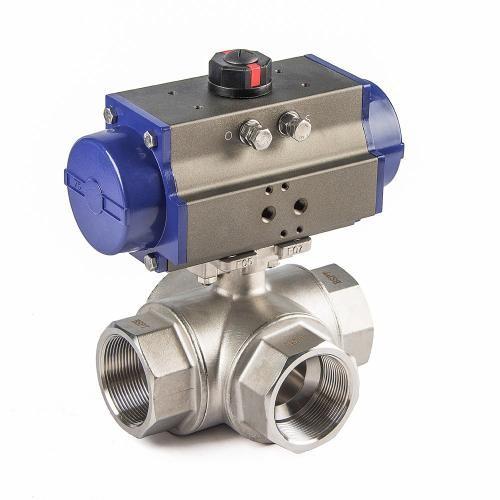

High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
Specifications
Brand Name :
KIRI or OEM
Model Number :
Q14F/Q15F
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
Supply Ability :
3000pcs/week
Delivery Time :
15~20 Days
Packaging Details :
wooden case packing or as required
Material :
WCB/201/304(CF8)/316(CF8M)
Size :
1/2"-4"
Connection :
BSPT/NPT/BSPP
Working Temperature :
-10°C to +120°C
Type :
Floating Ball Valve
Drving Mode :
lever, actuator
Description

1000WOG CF8 / CF8M 3 Way Ball Valves / Floating Ball Valve with Investment Casting Body

Description:


Ball valve is a form of quarter-turn valve which uses a floating ball to control flow through it.

  1. Blow-Out Proof Stem
  2. Investment Casting Body
  3. Reduce Port
  4. L/T Port Upon Request
  5. ISO5211 Direct Mounting Pad available
  6. Design Acc: ASME B16.34
  7. Thread Acc: ANSI B1.20.1, BS21, DIN2999, ISO-7
  8. Anti-Static Device for Ball-Stem-Body
  9. Inspection&Testing Acc: API 598

Specification

Item No Part Name Material
1 Cap CF8M CF8 WCB
2 Body Gasket PTFE
3 Seal Seat PTFE/RPTFE
4 Ball 316 304 201/304
5 Body CF8M CF8 WCB
6 Thrust Washer PTFE
7 Stem Packing PTFE
8 Gland Ring SS304/SS201
9 Stem 316 304 201/304
10 Handle SS201
11 Spring Washer SS304/SS201
12 Stem Nut SS304/SS201
13 Handle Cover Plastic
14 Locking Device SS201

Competitive Advantage:

Good quality can be guaranteed. KIRI VALVE is an ISO9001 ,CE certified manufacturer. All of our products must be tested before delivery.

Competative price.

Good quality at competative price will help you to win your market.

On-time delivery.

One stop service will improve the efficiency.

Sincere sevice:

We will reply you with 24 hours in working days, and will patiently answer every problem.

High Mounting Pad Stainless Steel Ball Valve Three Way Floating ISO 5211 Lockable Ball Valve
