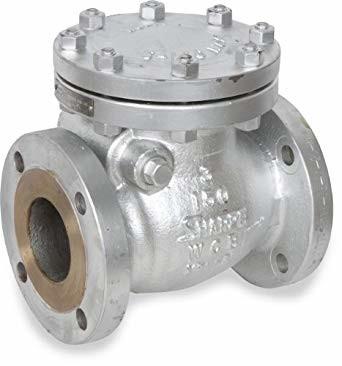

Modular Design Cast Steel Swing Check Valve , WCB Check Valve RF Flange End
Modular Design Cast Steel Swing Check Valve , WCB Check Valve RF Flange End
Specifications
Brand Name :
KIRI or OEM
Model Number :
CSCHV44C
Certification :
CE;ISO
Place of Origin :
CHINA
Pressure :
150LB
Material :
WCB
Size :
2"-24"
End :
RF flange
Description

ansi cast steel swing check valve WCB body class 150lb RF flange end

CAST STEEL SWING CHECK VALVE
Pressure rating and size:
CL150-CL2500
DN50 to DN1200
2"~48"
Material:
Body&Cover :WCB, WC6, WC9, LCB, CF8, CF8M, CF3M
Disc : WCB+STL,LCB,CF8,CF8M,WC6,WC9,CF3M
Seat: A105+STL, F304, F316.
Arm : WCB, WC6, WC9, LCB, CF8, CF8M, CF3M
Operated type:
N/A
Structure:
Swing type check valve
Design:
BS1868
Test:
API 598
Flange connection:
ANSI B16.5
Butt-weld ends:
ASME B16.25
Medium:
W.O.G
Temperature:
-196 to 593°C

Construction of Check Valve

Check valves are "automatic" valves that open with forward flow and close with reverse flow. The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. Exact operation will vary depending on the type of Check valve mechanism. Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
