Butt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat Design
Butt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat Design
Specifications
Brand Name :
KIRI OR OEM
Model Number :
KRFSBV313
Certification :
CE;ISO
Place of Origin :
CHINA
Pressure :
Class 150lb~1500LB
Size :
1/4"~4"
Material :
A105/F304/F316/F51 Etc
End :
Butt weld
Seat :
PTFE,25% GLASS FILLED PTFE,PEEK,NYLON,METAL
Work Temperature :
-29~350
Body Type :
Round
Description

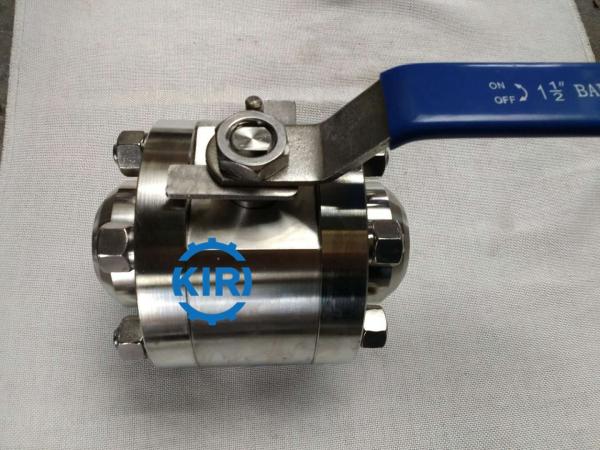

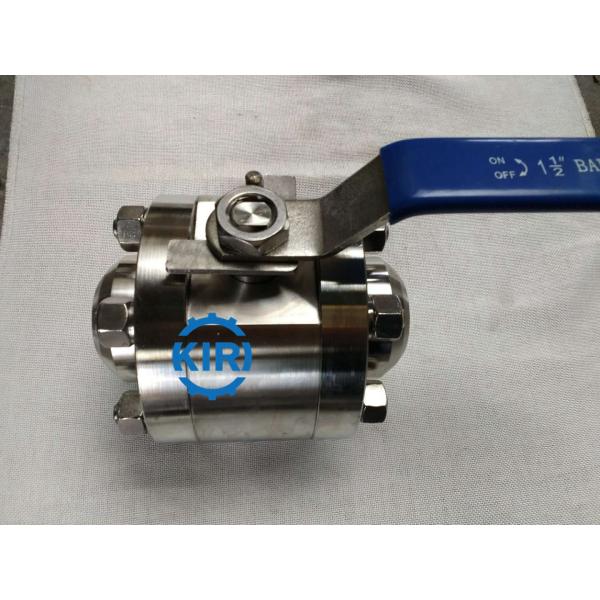

Forged stainless steel 3pc high pressure ball valve butt weld end

Applicable Standards

Design standardANSI B16.34 / API6D / BS5351
Face to faceASME B 16.10(or as per request)

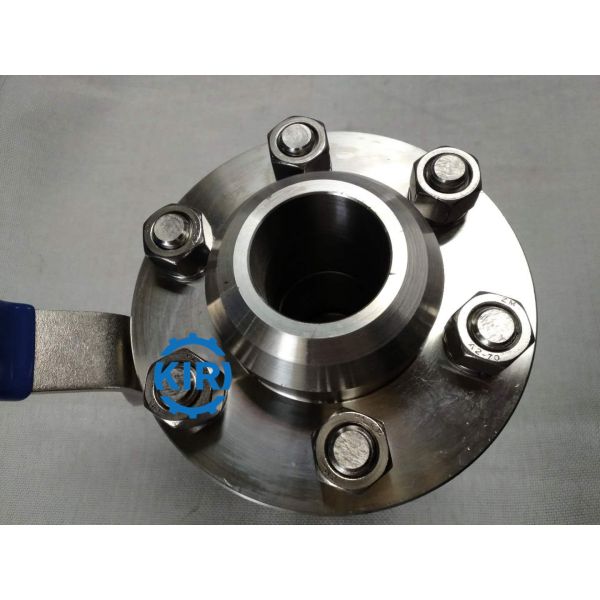

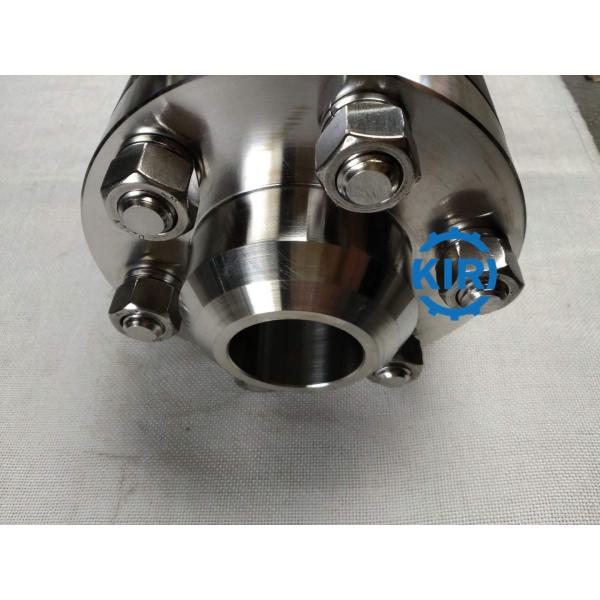

EndButt weld(ANSI B16.25)
Inspection and testAPI 598 / API 6D







Poducts Description :

Product Name3PC Forged stainless steel ball valve butt weld end
Size available1/4"~4"
Pressure Rating range150LB~2500LB
Ball TypeFloating Ball
Port TypeReduced bore(RB) and Full bore(FB)
Body MaterialF304,F316,F51 etc.
Ball and StemSS304, SS316,F51.etc.
Valve SeatRPTFE / PEEK / DEVLON/NYLON . etc.
OperationManual
Working temperature-29~300℃ degree
Fire-safety performancecan be available
Antistatic performancecan be available


Application:
Offshore /Oil /Gas /Chemical /Petrochemical
Notes: The specifications can be designed and satisfied for customers' special requirements
We have obtained Certificates of CE, API 6D, and ISO 9001
Butt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat Design
Main part name and material(Normal type)

No.Part nameA105F304/F316
1BonnetA105F304/F316
2GasketPTFEPTFE
3BodySS316SS304/SS316
4BonnetA105F304/F316
5NutA194 2HA194 B8
6BoltA193 B7A193 B8
7SeatPTFEPTFE
8BallSS304SS304/SS316
9StemSS304SS316
10Thrust gasketPTFEPTFE
11PackingPTFE/GraphitePTFE/Graphite
12GlandSS304SS304
13Disc spring gasketSS304SS304
14Position pinSS304SS304
15LeverSS304SS304
16Locking nutSS304SS304
17O RINGVitonViton
18Antistatic springSS304SS316


Butt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat Design
Main dimension(for 150lb-800lb)Other dimension is available on request,pls contact with us

sizedLHW
1/4"69255160
3/8"9.59255160
1/2"139260160
3/4"1711065160
1"2312765160
1.1/4"3014085170
1.1/2"38152105230
2”48152110230


Butt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat DesignButt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat DesignButt Weld End High Pressure Ball Valve RPTFE / PEEK Valve Seat Design
