Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
Specifications
Brand Name :
KIRI or OEM
Model Number :
WLM-CV-CC-DNXX
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
Supply Ability :
100pcs/week
Delivery Time :
28DAYS
Packaging Details :
wooden case packing or as required
Material :
304 or 316L stainless steel, forged or casting
Standard :
3A, ASME BPE, SMS 3017, DIN 11864, DIN 11853, BS 4825, DIN32676, ISO 2852
Size :
1/2" - 4" or DN15-DN100
Thickness :
1.2mm - 2mm
Seal Material :
Silicone, EPDM, Viton, NBR
Working Temperature :
-10°C to +120°C
Description

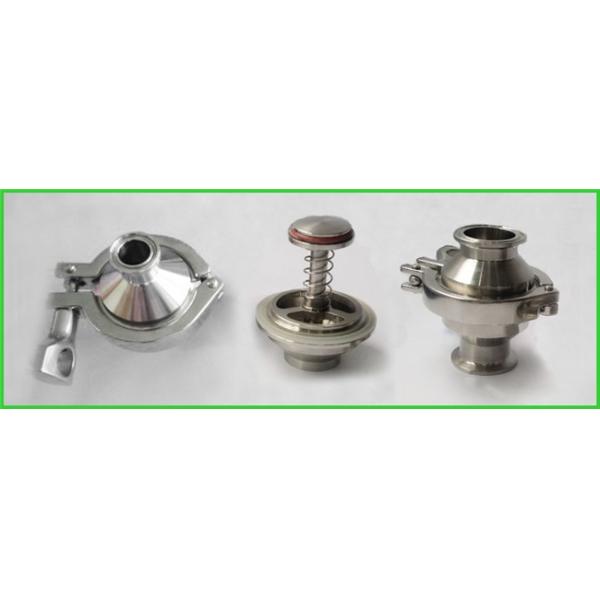

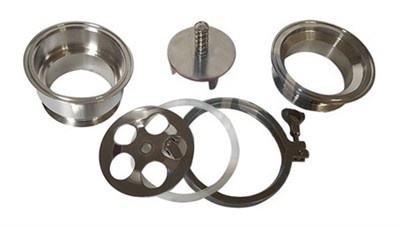

Main Parts:

  • Valve cover and valve seat: Hygienic 304 or 316L stainless steel
  • Sealing Gasket: VQM / EPDM / PTFE
  • Valve disc and spring
  • Petal
  • Tri Clamp

Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade

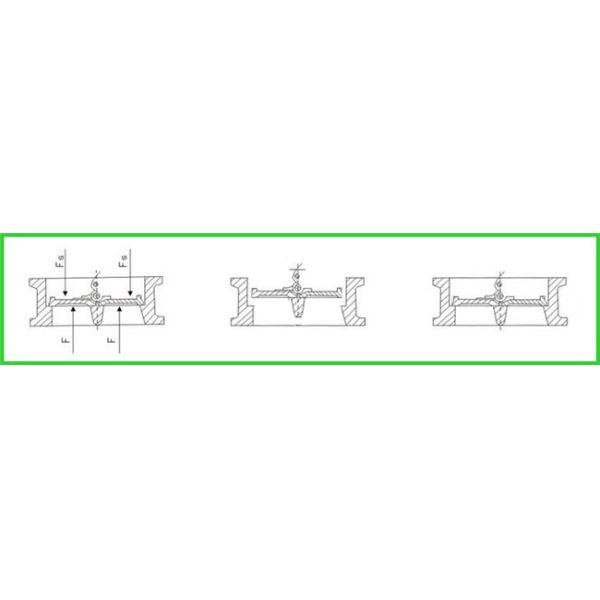

Working Principle:

  • ​1. The flow pressure of both sides of pipe system equals to each other, the valve is closed
  • 2. When flow pressure at bottom side increases, the valve disc is pushes upwards
  • 3. Valve is opened and medium flows through the valve accordingly
  • 4. When flow pressure of both sides return to balance, the spring force pushes the disc back
  • 5. Valve is closed, to stop the medium from flowing back

Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade

Quality Control:

  • PMI test to verify material grade
  • Dimension control during fabricating and finished
  • All valves should 100% pass press test
  • Firm and strong packing for air and sea shipment
  • Third party inspection available

Specifications:

Product Name: Hygienic Tri Clamped Non-return Check Valve
Material: 304 or 316L stainless steel, forged or casting
Standard: 3A, ASME BPE, SMS 3017, DIN 11864, DIN 11853, BS 4825, DIN32676, ISO 2852
Size: 1/2" - 4" or DN15-DN100
Thickness: 1.2mm - 2mm
Connection Way: Tri-Clamp
Seal Material: Silicone, EPDM, Viton, NBR
Surface Finish: Ra≤0.8μm
Working Temperature: -10°C to +120°C
Opening Pressure: 0.3 Bar (DN25), 0.2 Bar (DN32/40), 0.1Bar (DN-50/100)
Packing: Bubble bag + carton + plywood case

Check Valve Photos:

Pharmaceutical Sanitary Swing Type Check Valve PMI Test To Verify Material Grade
