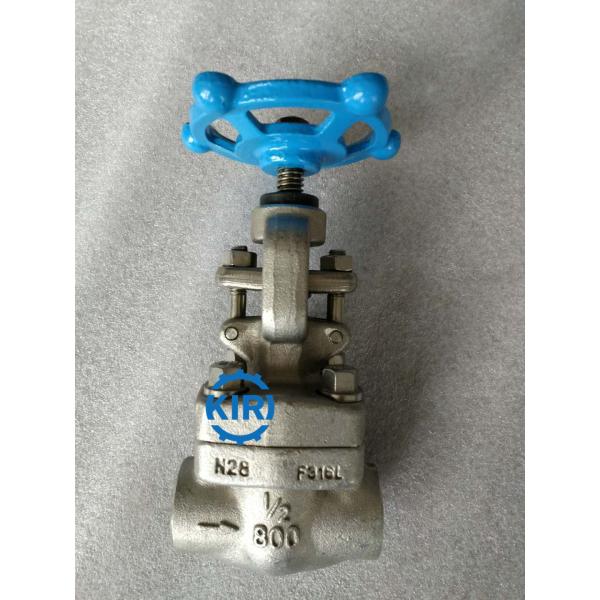

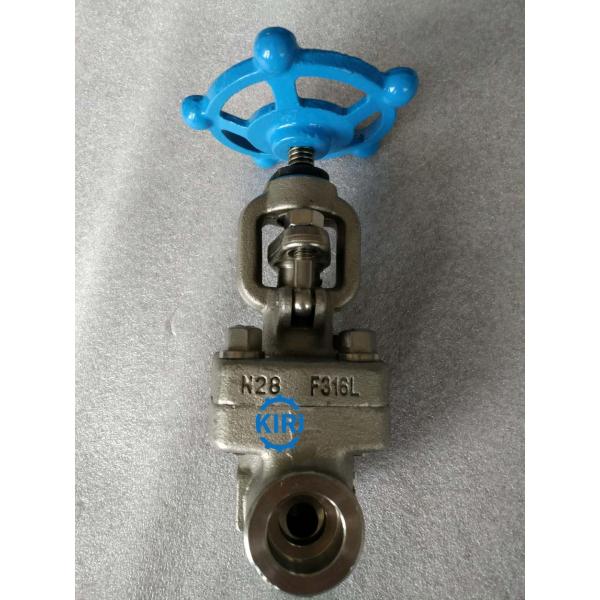

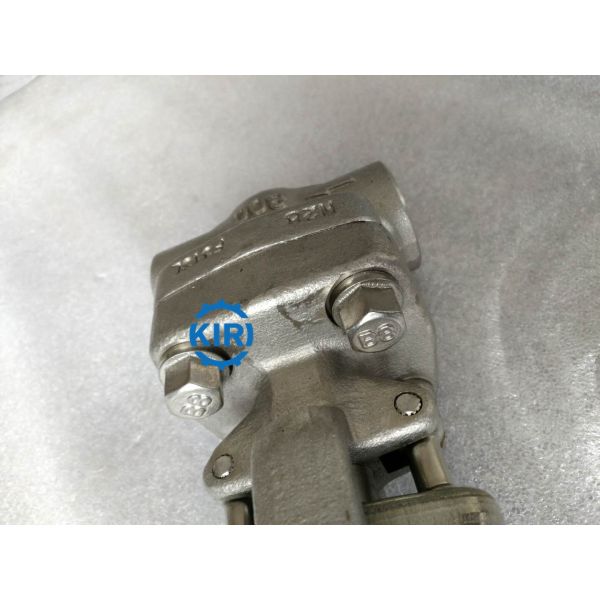

Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life
Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life
Specifications
Brand Name :
KIRI OR OEM
Model Number :
FSGLV03
Certification :
CE;ISO
Place of Origin :
CHINA
Size :
1/4"-3"
Pressure :
class 800lb
Material :
F316L
End: :
ISO7-1/SW/NPT
Port :
Reduce port
Description

API602 Forged stainless steel high pressure globe valve socket weld body class 800lb

Application :
 Design: API602/ASME 16.34/BS 5352
 Pressure Test: API 598
 tag: MSS SP25
 SW Socket welding ends according to ASME B16.11
 BW butt end by ASME B16.25
 NPT threaded connectors according to ASME B1.20.1
Pressure rating
 CLASS 800
 CLASS 1500
 CLASS 2500
Size range
1/4 "to 3"
Optional Materials
 Carbon Steel: A105, LF2,LF3
 Stainless Steel: F304, F304L, F316, F316L
 Duplex: F51, F55,
 Alloy: F1, F5, F5A, F9, F11, F22,F91,Alloy20#

Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life

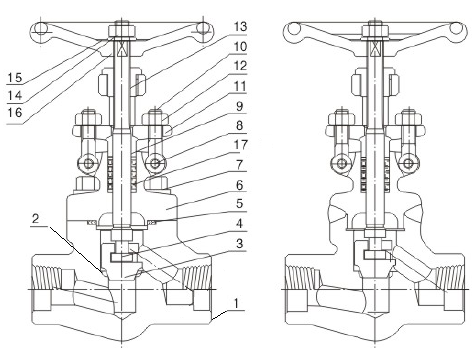

Forged steel high pressure globe valve standard material specifications


NO. Part Name A105 F11 F304(L) F316(L)
1 Body A105 A182 F11 A182 F304(L) A182 F316(L)
2 seat A182 F6 A182 F6 A182 F304(L) A182 F316(L)
3 Disc A182 F6 A182 F6 A182 F304(L) A182 F316(L)
4 Stem A276 410 A276 410 A276 F304(L) A276 F316(L)
5 Gasket SS + graphite SS + PTFE
6 Bonnet A105 A182 F11 A182 F304(L) A182 F316(L)
7 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
8 Pin A276 410 A276 304
9 Gland A276 410 A182 F304(L) A182 F316(L)
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A105 A182 F11 A182 F304
12 Gland Nut A194 2H A194 4 A194 8 A194 8
13 Stem Nut A276 410
14 H.W. Nut A194 2H A194 4 A194 8 A194 8
15 Nameplate Aluminum
16 Hand wheel A197
17 Stem Packing Flexible Graphite PTFE
Suitable Medium W.O.G. etc W.O.G. etc HNO3
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Note:Other materials are available on request.

Forged steel high pressure gate valve dimensions (mm) and weights (kg) for class 150lb-800lb

NPS Reduced port 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2" 3"
Full port 1/4" 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2"
L 79 79 92 111 120 120 140 178 180
H(OPEN) 164 164 164 203 224 260 300 350 370
W 100 100 100 125 160 160 180 200 220
Weights(kg) Bolted bonnet 2.5 2.3 2.4 4.3 5.8 7.8 12.5 17.5 24
Welded bonnet 1.9 1.7 1.9 3.3 5.2 6.8 10.6 13.8 22

Forged steel high pressure gate valve dimensions (mm) and weights (kg) for class 900lb-1500lb

NPS Reduced port 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2" 2.1/2"
Full port 1/4" 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2"
L 92 111 111 120 120 140 178 210
H(OPRN) 169 197 197 236 246 283 330 354
W 100 125 125 160 160 180 200 240
Weights Bolted bonnet 4 3.8 3.7 6.8 7.6 11.6 15 22
Welded bonnet 3.7 3.4 3.4 5.6 6 10.3 14.2 18

Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life

Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life

Class 800lb Forged Steel Globe Valve F316L Premium Materials Long Service Life
