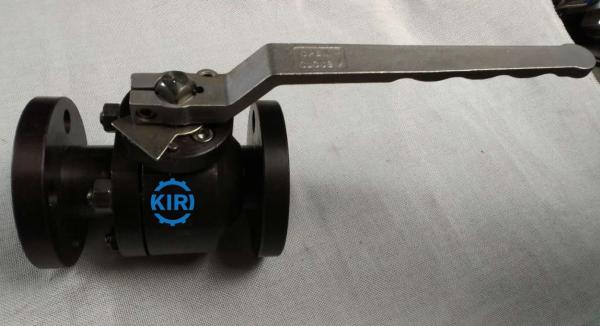

Flanged End Forged Steel Ball Valve 1/2 - 4 Size Working Temp -29 To 300 Degree
Flanged End Forged Steel Ball Valve 1/2 - 4 Size Working Temp -29 To 300 Degree
Specifications
Brand Name :
KIRI OR OEM
Model Number :
KRFSBV501
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1pc
Pressure :
class 150lb~600lb
Size :
1/2"~4"
Material :
A105/LF2
Seat :
PTFE,NYLON,PEEK,METAL
Description

Forged steel split body 2pc ball valve flange end


Applicable Standards

Design standard ANSI B16.34 / API6D / BS5351
Face to face ASME B 16.10(or as per request)
End ASME B 16.5
Inspection and test API 598 / API 6D






Poducts Description :

Product Name 2PC Forged steel split body ball valve
Size available 1/2"~4"
Pressure Rating range 150LB~600LB
Ball Type Floating Ball
Port Type Reduced bore(RB) and Full bore(FB)
Body Material A105,F304,F316,F51 etc.
Ball and Stem SS304, SS316,F51.etc.
Valve Seat RPTFE / PEEK / DEVLON/NYLON . etc.
Operation Manual
Working temperature -29~300℃ degree
Fire-safety performance can be available
Antistatic performance can be available
