Eco Friendly High Pressure Ball Valve , Full Bore Ball Valve Long Service Life
Eco Friendly High Pressure Ball Valve , Full Bore Ball Valve Long Service Life
Specifications
Brand Name :
KIRI or OEM
Model Number :
KRFSBV201C
Certification :
CE;ISO
MOQ :
1pcs
Supply Ability :
2000pcs every month
Delivery Time :
15 working days
Pressure :
class 150lb to 1500lb
Size :
1/4"-4"
Material :
A105/ss304/ss316/F51 etc
End :
ISO7-1,BSPT,NPT
Seat :
PTFE,25% GLASS FILLED PTFE,PEEK,NYLON
Work Temperature :
-29~220
Description

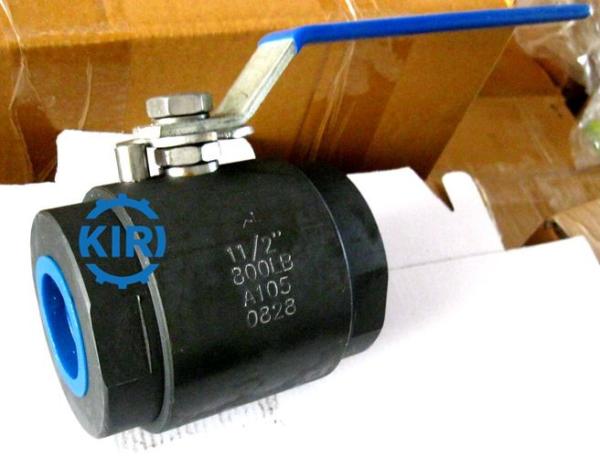

Forged steel high pressure ball Valve 800LB

Applicable Standards

Design standardANSI B16.34 / API6D / BS5351
Face to faceASME B 16.10(or as per request)
Thread endsASME B 1.20.1/ NPT/ BSPT/EN ISO 7-1
Inspection and testAPI 598 / API 6D







Poducts Description :

Product Name2PC Forged steel ball valve 800LB
Size available1/4"~4"
Pressure Rating range150LB~1500LB
Ball TypeFloating Ball
Port TypeReduced bore(RB) and Full bore(FB)
Body MaterialA105,F304,F316,F51 etc.
Ball and StemSS304, SS316,F51.etc.
Valve SeatRPTFE / PEEK / DEVLON/NYLON . etc.
OperationManual
Working temperature-29~220℃ degree


Application:
Offshore /Oil /Gas /Chemical /Petrochemical
Notes: The specifications can be designed and satisfied for customers' special requirements
We have obtained Certificates of CE, API 6D, and ISO 9001
Eco Friendly High Pressure Ball Valve , Full Bore Ball Valve Long Service Life
Main part name and material(Normal type)

No.Part nameA105F304/F316
1BodyA105F304/F316
2BallSS316SS304/SS316
3StemSS316SS304/SS316
4SeatRPTFERPTFE
5GasketO ringO ring
6PackingPTFE/GraphitePTFE/Graphite
7Thrust gasketPTFEPTFE
8Position plateSS304SS304
9LeverSS304SS304
10Position pinSS304SS304
11Locking nutSS304SS304


Main dimension(for 150lb-800lb)Other dimension is available on request,pls contact with us

sizedLHW
1/4"9.56855160
3/8"9.56855160
1/2"137060160
3/4"178065160
1"239565160
1.1/4"3011585170
1.1/2"38125105230
2”48135110230
