CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
Specifications
Brand Name :
KIRI
Model Number :
Y Type
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1 piece
Price :
RMB,60/PC
Payment Terms :
L/C, T/T
Delivery Time :
1000pcs/week
Packaging Details :
wooden case packing or as required
MATERIAL :
A105, LF2, SS304, SS316, SS304L, SS316L
SIZE :
1/2"-2"
END :
BW, RF, RTJ, SW, NPT,BSPP
Media :
Water, gas, oil, steam etc.
Pressure :
ANSI 900lb / 900#, 1500lb / 1500#, 800lb / 800#, 2500lb / 2500#
Package :
wooden case packing or as required
Description

CF3M,Forged Y Strainer, Carbon Steel, Stainless Steel, ANSI Standard Bolted Cover Y Filter, SW / NPT

China strainer supplier, offers forged steel y strainer, ends for flange ends, sw, npt (threaded or crewed).

1. Sizes: 1/2" -2"

2. Pressure rating: ANSI 900lb / 900#, 1500lb / 1500#, 800lb / 800#, 2500lb / 2500# (Forged type)

3. Suitable medium: Water, gas, oil, steam etc.

4. Body material: A105, LF2, SS304, SS316, SS304L, SS316L

5. Screen: Stainless steel (304SS, 316SS)

6. End connection: BW, RF, RTJ, SW, NPT

7. For more information on the forged y strainer, please contact us.

CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter

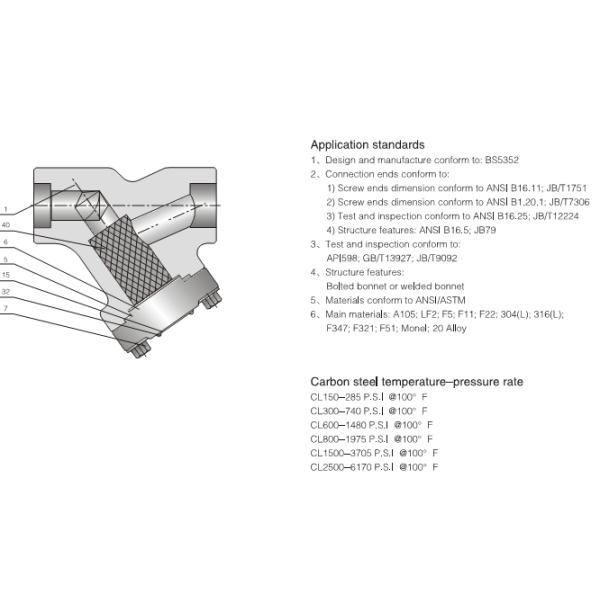

Main parts materials list

No. Part name Material
1 Body A105(N) A350-LF2 A182-F11 F304(L) F316(L) F51
5 Gasket Graphite+304SS/316SS
6 Bonnet A105(N) A350-LF2 A182-F11 F304(L) F316(L) F51
7 Bolt B7 L7 B16 B8(M) B8(M) B8M
15 Nameplate Standards
32 Rivet H62
40 Screen 304SS/304LSS/316SS/316LSS

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Y Type Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.

Descriptions

1. Forged Y Type Strainer Standards

1. Design and manufacture: BS 5352
2. Inspection and test: API 598
3. Structure feathers: Bolted bonnet, welded bonnet, Pressure sealing bonnet
4. End connections: 　
SCREWED ANSI B1.20.1 (NPT)/BS21 /BSP)
BUTTWELD ANSI B16.25
SOCKET WELDING ANSI B16.11
FLANGED ANSI B16.5

CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter

CF3M Forged steel Y Strainer , Carbon Steel Y Strainer Valve ANSI Standard Bolted Cover Y Filter
