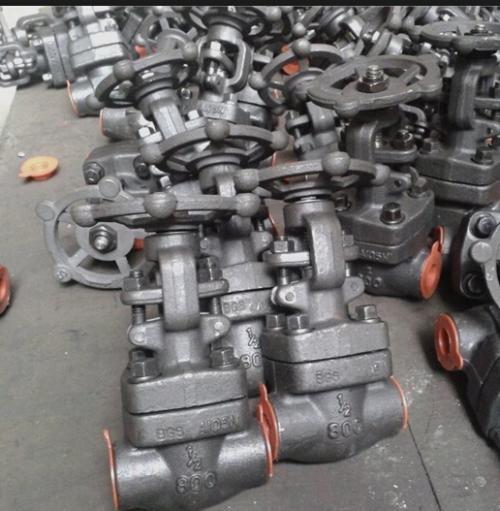

NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator
Specifications
Brand Name :
KIRI
Model Number :
globe valve
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1 piece
Price :
RMB,60/PC
Payment Terms :
L/C, T/T, L/C
Delivery Time :
5 days
Packaging Details :
wooden case packing or as required
Supply Ability :
1000pcs/week
MATERIAL :
A105,A182,CF8,CF8M,CF3,CF3M,F11,LF2
SIZE :
1/2"-2"
END :
SW,BSPP,NPT,BSPT,FLANGE
Media :
Oil, Gas, Water, Steam, Acids
Pressure :
150LB~1500LB (DN15-50)
Package :
wooden case packing or as required
Description

Design Features

  • Stellite faced seat and disc seat surfaces as standard trim, and 13% chrome stem (API trim 5). Other trims available on request.
  • Valves are full port design per ASME B16.34
  • Wall thickness per heavy wall API 600 requirements.
  • Seat faces lapped for smooth finish and superior sealing.
  • Swivel disc for optimal seating and longer seat life.
  • Each valve is shell, seat and backseat pressure tested per industry standard API 598.
  • Gland is two piece gland / gland flange design for optimal alignment and uniform packing compression.
  • Weld end valves are B16.10 short pattern design.
  • Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.

Specifications

item Applicable Standard
Wall Thickness API 600
pressure-temperature ratings ASME B16.34
Valve Design API 602
End to end ASME B16.10
Butt weld desing ASME B16.25
Material ASTM

Material List

NO.. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 420 A276 304 A276 304(L) A276 316(L)
3 Wedge A276 430&410 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
5 Pressure Seat A105 A182 F304 A182 F304(L) F316(L)
6 Pressure Ring A276 304L A276 316L
7 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
8 Gland Eyebolt A193 B7 A193 B16 A193 B8(M) 　
9 Pin A276 420 A182 F304(L)
10 Stem Packing Flexible Graphite PTFE
11 P.S.Lock Nut A194 2H A194 4 A194 8 A194 8M
12 Gland A276 F420 A182 F304
13 Gland Flange A216 WCB A351 CF8
14 Nut A194 2H A194 4 A194 8 A194 8M
15 Yoke Nut A276-410
16 Retaining Nut A194 2H A194 4 A194 8 A194 8M
17 Handwheel A197
18 H.W.Lock Nut A194 2H A194 4 A194 8 A194 8M
19 Oil Cup Brass
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29~425 -29~550

-29~180

NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuatorNPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator

Forged steel Flanged End Globe Valve 150Lb~1500L - RF,RTJ

NPT High Temp Pressure Seal Globe Valve Bonnet A105 With Nace Mr0175 Material/forged globe valve with electric actuator


Standard Material Specifications (Class 150Lb~600Lb)
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Gasket Corrugated SS + graphite SS + PTFE
3 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
4 Pin A276 420 A276 304
5 Gland A276 410 A182 F304(L) A182 F316(L)
6 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Gland Nut A194 2H A194 4 A194 8 A194 8M
8 Yoke Nut A276 410
9 H.W. Nut A194 2H A194 4 A194 8 A194 8M
10 Nameplate SS
11 Hand wheel A197
12 Gland Flange A216 WCB A351 CF8
13 Stem Packing Flexible Graphite PTFE
14 Bonnet A105 A276 304 A182 F304(L) A182 F316(L)
15 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
16 Disc
