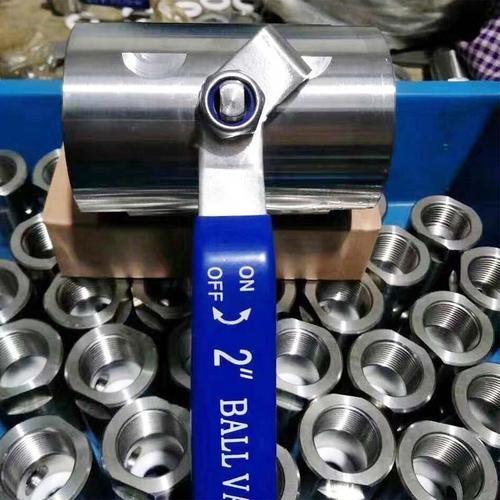

stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
Specifications
Brand Name :
KIRI
Model Number :
Q11F;BALL VALVE
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
Supply Ability :
10000pcs/week
Delivery Time :
5days
Packaging Details :
wooden case packing or as required
Material :
Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M)
Size :
1/4''~2'' ( DN6~DN25)
Port :
Reduce Port
Working Pressure :
1000PSI (PN63/6.3Mpa)
Connection Ends :
NPT/BSP/BSPT/DIN259/DIN2999
Working Temp. :
-10~120℃
Suitable Medium :
Water, Natural Gas, Oil and some corrosive liquid
Seal :
PTFE, RPTFE, PPL
Description

Products Description

The Advantage of Ball Valve:

1. Fluid resistance small;
2. Structure simple, small size, light weight;
3. Closely reliable, sealed surface material widely used plastic;
4. Easy to operate, the closing rapidly, from open all around, as long as there 90E, facilitate

remote control;
5. Maintenance convenience, Ball valve structure simple;
6. Ball valve whole or in the open all closed, spheroid and the sealed surface with medium ,

valve seat separation medium through, will not cause the valves sealed surface erosion;
7. Widely range in application.

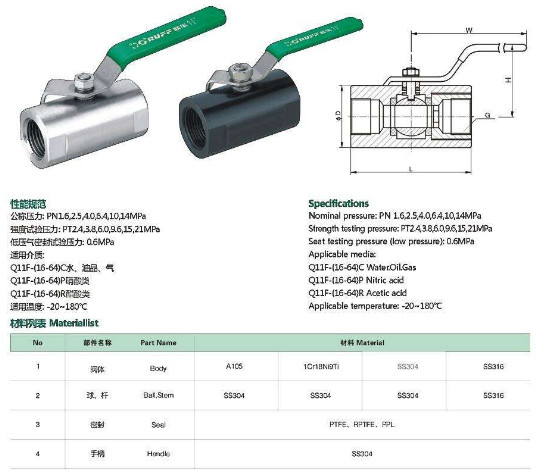

Specifications:

stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve

DN NPT Dimension (mm) WT(g)
d L W H E D D
6 1/4" 8 60 110 56 11.5 30 320
10 3/8" 18 60 110 58 11.5 31 320
15 1/2" 10.5 60 110 58 14 32 350
20 3/4" 13 67.3 110 62 15 38 430
25 1" 17 73 110 68 15 45 570
32 11/4" 22 90 150 75 18 53.4 1000
40 11/2" 25 97.5 150 83 19 63 1550
50 2" 32 112 150 90 19 73 2170
65 21/2" 40 132 180 95 21 92 3625
80 3" 50 156 220 100 27 109 5800
100 4" 65 196 220 115 29 138 7200

Application:

1. NaturaI gas industry

2. Petroleum products

3. Power station boiler

4. Petrochemical industry

5. Metallurgy

6. Mining

7. City construction

8. Environment protection

9. Food industry

stainless steel 1PC ball valve,304/CF8M,201,NPT;Female Thread;Low Fluid Resistance ;Cantonese ball valve
