2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine
2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine
Specifications
Brand Name :
Forimi
Model Number :
FMY-II
Certification :
CE, ISO 13485 ,FDA
Place of Origin :
Beijing ,China
MOQ :
1 Set/sets
Price :
7000$~13000$
Payment Terms :
Wire Transfer , West Union , Paypal , Personal Transfer
Supply Ability :
300 Sets /month
Delivery Time :
3~7 Days
Packaging Details :
Aluminum Alloy Case /Wooden Case
type :
Q Switched Nd Yag Laser
function :
tattoo removal; freckle removal, pigment removal, skin whiting
energy :
200mj - 2000 mj
pulse duration :
4ns± 1ns
Laser Arm :
Korea Lab Seven-joints articulated arm
Frequency :
1 to 10Hz
Spot sizes :
2-10mm diameters
Input power :
2000W
cooling :
air+water
Aiming beam :
650nm red diode laser
Energy Calibration :
Energy Calibration
Screen :
10.4 inch screen
Description

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

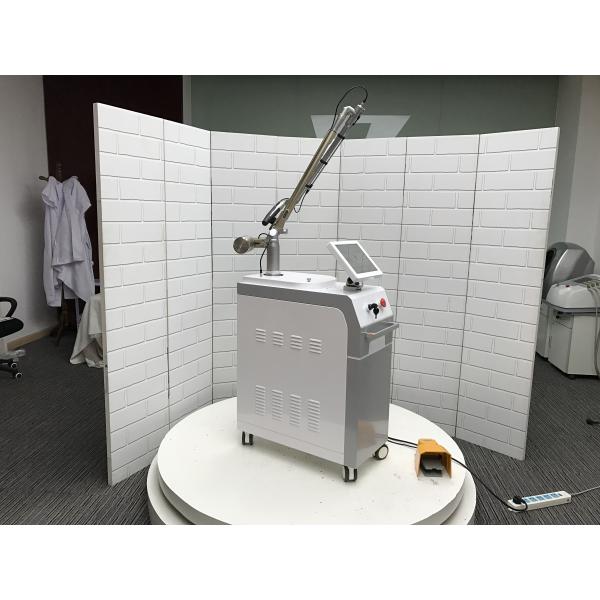

Real Product:

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Treatment principle:

The Q-switched ND: YAG laser delivers light of specific wavelengths with high energy which are absorbed by pigments in tattoo and result in a shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. These tiny particle is then eliminated by the body. Since the special wavelength can only be absorbed by pigment particles, no injury to skin and normal tissues will occur.

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Scope of treatment:

A. Epidermal pigment: Body tattoo , eye line and brow tattoo...

B. Vessels disease: Varicosity removal, capillary hemangioma...

C. Laser facial: Oil control, skin rejuvenation, skin pore improvement...

D. Dermal pigment: Nevus of ota, birthmark, coffee spot age pigment, freckle...

Technical parameters:

Laser type ND:YAG
Wavelength Mode 1064nm/532nm ;(option 585nm/650nm/755nm)
Laser output method Electro Optic Q-switch ; Long pulse width
Beam Profile Flat Hat Mode (back-cavity mirror)
Pulse Duration 4ns(Q-switch mode) ;300 μs(long pulse mode)
Pulse energy

Solid State >3000mj

Arm terminal:

Single pulse energy 1200mj(1064nm) ,600mj(53Pulse energy
Spot diameter 2-10mm adjustable (circle origin)
Guiding beam arm Korea Lab Seven-joints articulated arm
Pulse rate 1-10Hz
Energy Calibration External, Auto-calibration & Self-restoration
Aiming beam 650nm red diode laser ;adjustable off/on
Screen 12 inch 270 ° flexible
Input voltage AC100-120V or AC220-230V, (Fuse 125V/25A or 250V/15A),
50/60Hz,
Cooling system Closed-off Water cooling+wind cooling
Input power 2000W
Net weight 85kg
Dimension(W*L*H)cm 80*40*110cm

Machine Design Details:
1. 12 Inch full touch LCD display screen, 270° Rotatable
2. Air Blowing pipe to offer better protection for the mirror
3. Korea Lab 7 articular-arm of light guide tranmitter
4. Full Metal Case material & push metal handle

Machine Advantages:

*Korea lab toppest laser stable & Average output spot , flat hat maximam reduce the hurt to skin
*Germen Soest Flexible spindle easier your view from any version
*USA Lambda Laser ink heads optional , 585nm,650nm ,755nm.. meet your professional requirement for any color

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

1. US original Laser Xenon Lamp support its more shoots .
2. Industry module arranged lens & parts raise the stability
3. Energy isn't the problem ! single pulse max reach 3000mj
4. 2000W independent Laser power stable & durable
5. Stable 4ns Qswitch motor , oscilloscope could prove!
2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Compare With other Q-switch nd yag laser:2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Humanized systems:

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Treatment result:

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Company information:

Over 12 years producing experience, Beijing Forimi S&T Co,Ltd is a manufacturer for Laser and Light based medical aesthetic equipments. Factory Cover 2000 square meters with professional R&D, production, distribution and service team .Manufacturing process and quality assurance are under strict standard of ISO9001 and ISO13485 . we aim to give high quality products with the advanced technology ,unique designs, powerful function and efficient services to beyond customer’s satisfaction.

Forimi derive from Chinese name “FuLimei”, mean to offering beauty and healthy to people. We hope to bring customer a scientific, fashionable beauty lifestyle

2018 Most Advanced 1064nm 532nm multifunction nd yag laser carbon laser peel machine

Contact us:

Beijing Forimi S & T Co., Ltd
Tel : +86 1060418900
Mob/Whatsapp:+86 13520325224 | Skype: Forimi Cynthia
Facebook : Cynthia@forimi.com
Web: www.forimi.com
Address:West zone Building No.5 Mauhwa Industry Park,Caida 3rdStreetShunyi District ,Beijing
