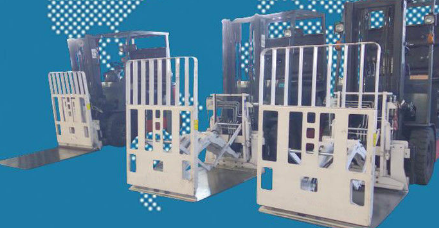

Concrete Push Pull Forklift Clamp Lift 380x1220mm Platen Size
Concrete Push Pull Forklift Clamp Lift 380x1220mm Platen Size
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Truck Attachment Push/Pulls Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant, Hotels, Garment Shops, Building Material Shops
Platen Size: :
380*1220mm
Weight: :
347kg
Minimum Truck Carriage Width: :
790mm
Vertical Center of Gravity: :
307mm
Horizontal Center of Gravity: :
246mm
Effective Thickness: :
165mm
Description

Accessories for forklift 1,5T 2T 3T forklift

Functions & Applications
The push-pull type is used to handle skateboard bags, cartons or stuffed goods without pallet handling and stacking, resulting in high efficiency and low maintenance costs.

Features

* Use high-strength alloy materials.

* Use simple hydraulic components to protect the hydraulic system and extend the service life.

* If the wooden pallet is used for transport, it is not necessary to disassemble the push pull, but simply fold the push plate directly onto the handle.



Options

* Different fork widths and lengths

* Different push plate sizes

* Different installation levels



Parameter
Concrete Push Pull Forklift Clamp Lift 380x1220mm Platen Size

PPS45E-001A Platen Size 455*1220mm, Outside Platen Spacing 1017-1170mm, Horizontal Center of Gravity 264mm

PPS45E-003A Platen Size 380*1220mm, Outside Platen Spacing 865-1015mm, Horizontal Center of Gravity 246mm

Capacity@
Load Center
(Kg@mm)		 Platen Size
W*L
(mm)		 Outside Platen Spacing
(mm)		 Minimum Truck Carriage Width
(mm)		 Vertical Center of Gravity
CGV
(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2000@600 455*1220 865-965 915 216 516 165 231
2000@600 380*1220 865-1065 915 229 491 165 211
2000@600 455*1220 1015-1220 710 218 509 165 234
2000@600 380*1220 865-1065 710 231 484 165 213
2000@600 455*1220 1015-1115 915 208 634 229 256
2000@600 380*1220 865-965 915 223 604 229 239
2000@600 455*1220 1015-1170 790 295 361 165 264
2000@600 380*1220 865-1015 790 307 347 165 246


Remark:

1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.

2. PPS /PAS Type 2 is equipped with an additional oil switch required by a forklift and another Type 1 is equipped with an additional oil switch.

3. The push-pull sidebar with the sidebar type is approximately 100mm.


Other size available on request.


Hydraulic Flow&Pressure

Model Min.
Hydraulic
Flow(L/min)		 Rec.
Hydraulic
Flow(L/min)		 Max.
Hydraulic
Flow(L/min)		 Min.
Hydraulic
Pressure(Bar)		 Max.
Hydraulic
Pressure(Bar)
PPB35E 20 40 60 35 160
PPB45E 20 40 60 35 160
PAS35E 20 40 60 35 160
PAS45E 20 40 60 35 160
QPB35E 20 40 60 35 160
QPB45E 20 40 60 35 160

Options:

Integral fork plate

Widen and lengthen push plate



Applicable Industries

Manufacturers, hotels, clothing stores, building materials stores

Concrete Push Pull Forklift Clamp Lift 380x1220mm Platen Size



Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
