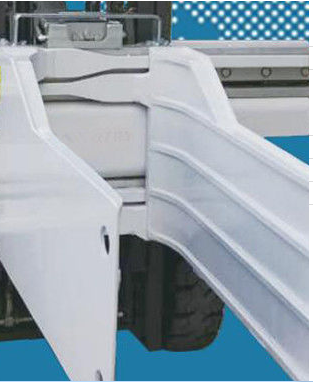

3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps
3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps
3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps
3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Bale Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Building Material Shops, Farms, Retail, Construction works, wool, synthetic, textile bales
Overall Height: :
665mm
Weight: :
310kg
Opening Range： :
455-1735mm
Vertical Center of Gravity: :
220mm
Horizontal Center of Gravity: :
203mm
Effective Thickness: :
127mm
Description

1700kg 2500kg Forklift attachment clamp

Functions & Applications
Forklift binding clamp can efficiently and economically handle almost any type of binding products, such as cotton, waste paper, corrugated paper, chemical fiber, metal, industrial waste, etc. it has a very wide range of application scenarios. It is suitable for papermaking, textile, chemical fiber, waste paper recycling, port and other industries. Pallet handling and stacking operations.



Options

* User defined opening range

* Custom arm size

* Various installation categories are available

* Load backrest

* Bolt bale arm




Parameter
3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
1700@500 BCS20A-103A 455-1735 420 685 1040 82 665 220 310 127 203
1700@500 BCS20A-104A 455-1735 420 785 1040 82 665 220 337 127 239
1700@500 BCS20A-105A 450-1730 420 915 1040 82 665 220 378 127 307
1700@500 BCS20A-106A 450-1730 420 991 1040 82 665 220 382 127 315
1700@500 BCS20A-107A 450-1730 420 1194 1040 82 665 220 425 127 401
2500@500 BCS30A-108A 550-1900 480 991 1015 98 730 255 516 142 315
2500@500 BCS30A-108B 550-1900 480 991 1015 98 730 255 519 150 312
2500@500 BCS30A-109A 545-1890 480 1194 1015 98 730 255 574 142 396
2500@500 BCS30A-109B 545-1890 480 1194 1015 98 730 255 590 150 391
2500@500 BCS30A-110A 550-1900 480 915 1015 98 730 255 498 142 307
2500@500 BCS30A-110B 550-1900 480 915 1015 98 730 255 501 150 305
2200@500 BCS30A-111B 490-2300 480 990 1600 98 730 255 660 150 240
2200@500 BCS30A-112B 490-2300 480 1195 1600 98 730 255 680 150 240


Remark

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The open arm range is the space between the two arm tips.

4. The arm thickness "d" is the actual required operating space.

5. Rotate the bale clamp optionally.


3400 Lbs 5000 Lbs Forklift Bale Pulp Clamps


Applicable Industries
Building materials stores, farms, retail, construction engineering, wool, synthetic fiber, textile packaging


Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
