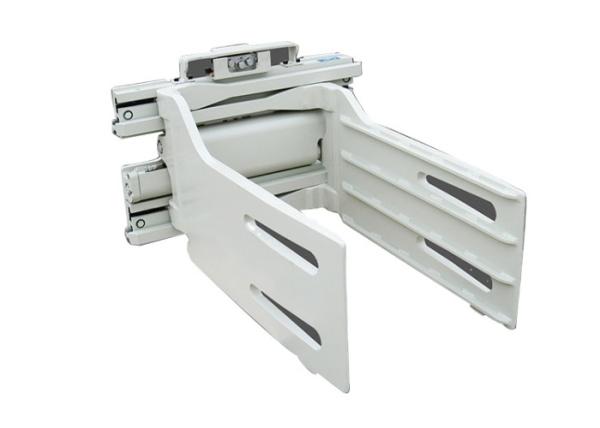

2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment
2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment
2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment
2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Bale Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
baled products including cotton, wool, synthetic, textile bales
Overall Height: :
665mm
Weight: :
422kg
Opening Range： :
450-1730mm
Vertical Center of Gravity: :
220mm
Horizontal Center of Gravity: :
315mm
Effective Thickness: :
127mm
Description

Different Capacity High Quality Forklift Attachment Bale Clamp

Parameter

2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
1400@500 BCS15D-001A 420-1570 415 990 940 70 645 220 415 127 315
1400@500 BCS15D-002A 420-1570 415 915 940 70 645 220 405 127 307
1900@500 BCS20D-003A 455-1735 415 685 1040 70 665 220 350 127 203
1900@500 BCS20D-004A 455-1735 415 785 1040 70 665 220 377 127 239
1900@500 BCS20D-005A 450-1730 415 915 1040 70 665 220 418 127 307
1900@500 BCS20D-006A 450-1730 415 991 1040 70 665 220 422 127 315
1900@500 BCS20D-007A 450-1730 415 1194 1040 70 665 220 465 127 401
2700@500 BCS30D-008A 550-1900 460 991 1015 75 730 255 556 142 315
2700@500 BCS30D-008B 550-1900 460 991 1015 75 730 255 579 150 312
2700@500 BCS30D-009A 545-1890 460 1194 1015 75 730 255 624 142 396
2700@500 BCS30D-009B 545-1890 460 1194 1015 75 730 255 640 150 391
2700@500 BCS30D-010A 550-1900 460 915 1015 75 730 255 538 142 307
2700@500 BCS30D-010B 550-1900 460 915 1015 75 730 255 538 150 305
2200@500 BCS30D-011B 490-2300 460 990 1600 75 730 255 710 150 240
2200@500 BCS30D-012B 490-2300 460 1195 1600 75 730 255 730 150 240

Remark

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2. Two sets additional oil circuit required on forklift.

3. Open arm range is the space between two arms tip.

4. Arm thickness “D” is the actual requested operation space.

5. Rotating bale clamps choose able.

Functions & Applications

Forklift Bale Clamp is Efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales.

Features

* Proven durable T-beam arm aluminium frame construction.

* Superior arm-slide bearing for extended service life.

* Ribs provide secure grip and give driver good tip handling and bales spinning capabilities.

* Regenerative hydraulic valving for optimal arm speed.

* Excellent driver visibility.

Options

* Custom opening ranges

* Custom arm sizes

* Various mounting classes available

* Load backrests

* Bolt bale arm

2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment2 Ton Forklift Cotton Bale Clamp Round Bale Clamp Attachment

Applicable Industries

Baled products including cotton, wool, synthetic, textile bales

Can be customized according to size

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
