Hydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For Sale
Hydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For Sale
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
Condition: :
New
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant,Machinery Repair Shops, Farms
Overall Height: :
730mm
Weight: :
556kg
Opening Range： :
550-1900mm
Vertical Center of Gravity: :
255mm
Horizontal Center of Gravity: :
315mm
Effective Thickness: :
142mm
Description

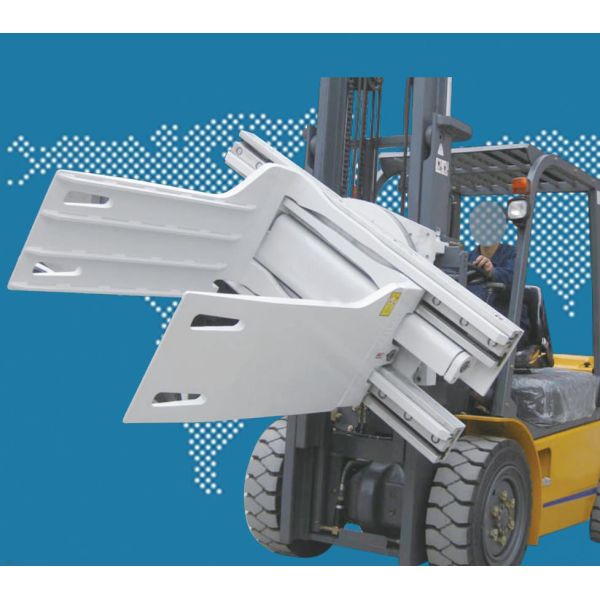

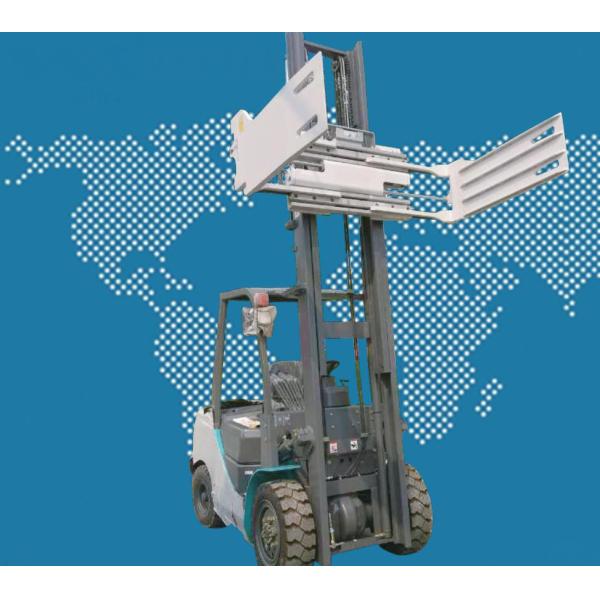

2.5Ton 3Ton Forklift Attachment Bale Clamp

Parameter

Hydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For Sale

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2700@500 BCS30D-008A 550-1900 460 991 1015 75 730 255 556 142 315
2700@500 BCS30D-008B 550-1900 460 991 1015 75 730 255 579 150 312
2700@500 BCS30D-009A 545-1890 460 1194 1015 75 730 255 624 142 396
2700@500 BCS30D-009B 545-1890 460 1194 1015 75 730 255 640 150 391
2700@500 BCS30D-010A 550-1900 460 915 1015 75 730 255 538 142 307
2700@500 BCS30D-010B 550-1900 460 915 1015 75 730 255 538 150 305

Functions & Applications

Bale clamps enable bale clamp products be handled safely, efficiently, and ecnomicaly without any damage. With different lift capacity, this Hydraulic attachment is ideal for the recycling industry and for bale products applications.

Forklift bale clamps can efficiently and economically handle almost any type of bale products, including cotton, wool, synthetic fibers, textile bales, corrugated paper, newsprint, rags, hay, metal and other waste bales.

Options

* Custom opening ranges

* Custom arm sizes

* Various mounting classes available

* Load backrests

* Bolt bale arm

Remark

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2. Two sets additional oil circuit required on forklift.

3. Open arm range is the space between two arms tip.

4. Arm thickness “D” is the actual requested operation space.

5. Rotating bale clamps choose able.

Hydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For SaleHydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For Sale

Applicable Industries

Wool, synthetic, Manufacturing Plant,Machinery Repair Shops, Farms

Can be customized according to size

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
