Paper Forklift Bale Clamp 520MM Opening Lift Truck Attachments
Paper Forklift Bale Clamp 520MM Opening Lift Truck Attachments
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Bale Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant, Retail, Machinery Repair Shops, Food & Beverage Factory
Overall Height: :
740mm
Weight: :
620kg
Opening Range： :
520-1870mm
Vertical Center of Gravity: :
250mm
Horizontal Center of Gravity: :
345mm
Effective Thickness: :
150mm
Description

Forklift connection clamps for all brands of forklifts




Parameter
Paper Forklift Bale Clamp 520MM Opening Lift Truck Attachments

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
3000@500 BCS30F-001A 520-1870 460 1200 1130 75 740 250 620 150 345
3000@500 BCS30F-001B 520-1870 460 1200 1130 75 740 250 620 150 345
3000@500 BCS30F-002A 750-2100 460 1200 1265 75 740 250 650 150 350
3000@500 BCS30F-002B 750-2100 460 1200 1265 75 740 250 650 150 350
2500@500 BCS30F-003A 460-2300 460 1200 1680 75 740 250 750 150 300
2500@500 BCS30F-003B 460-2300 460 1200 1680 75 740 250 750 150 345
3000@500 BCS30F-004A 585-2000 460 1200 1265 75 740 250 625 150 345
2500@500 BCS30F-005A 460-2330 460 1000 1680 75 740 250 730 150 300
2800@500 BCS30F-006A 815-2230 460 1200 1330 75 740 250 730 150 345
2800@500 BCS30F-006B 815-2230 460 1200 1330 75 740 250 730 150 345

Functions & Applications
The utility model has the advantages of economy, practicality, flexibility and high efficiency. When handling soft packaging articles, the use of clips can avoid damage, which is also the advantage of the utility model. It is the key to improve the working efficiency of forklift and plays a positive role in reducing the damage rate of goods.


Options
* Custom opening ranges
* Custom arm sizes
* Various mounting classes available
* Load backrests
* Bolt bale arm
Remark

1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The open arm is the distance between the two arms tips.

4. The "d" arm thickness is the actual working space required.

5. Turn the balloon cell optionally.

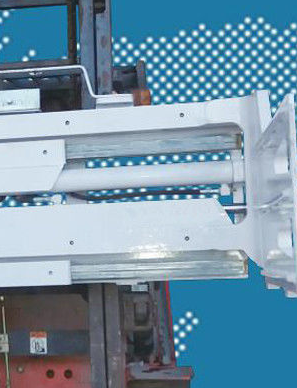

Paper Forklift Bale Clamp 520MM Opening Lift Truck Attachments

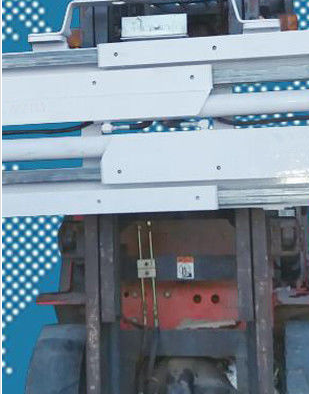

Paper Forklift Bale Clamp 520MM Opening Lift Truck Attachments



Applicable Industries
Manufacturing, retail, machinery repair, food and beverage


Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
