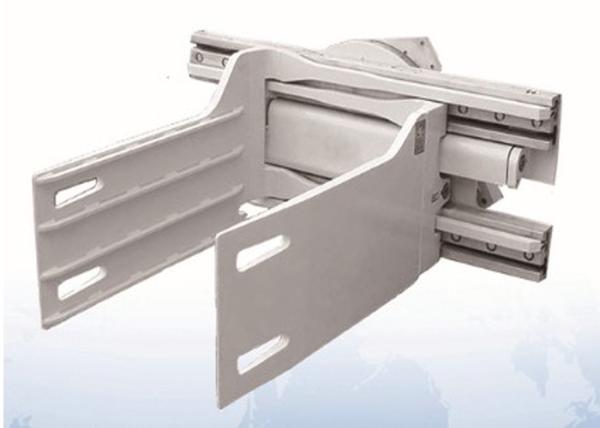

Cardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck
Cardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck
Cardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck
Cardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Bale Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant, Garment Shops, Building Material Shops, Machinery Repair Shop
Overall Height: :
645mm
Weight: :
415kg
Opening Range： :
420-1570mm
Vertical Center of Gravity: :
220mm
Horizontal Center of Gravity: :
315mm
Effective Thickness: :
127mm
Description

Material handling equipment lifting equipment forklift attachment bale clamp

Parameter

Cardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
1400@500 BCS15D-001A 420-1570 415 990 940 70 645 220 415 127 315
1400@500 BCS15D-002A 420-1570 415 915 940 70 645 220 405 127 307
2200@500 BCS30D-011B 490-2300 460 990 1600 75 730 255 710 150 240
2200@500 BCS30D-012B 490-2300 460 1195 1600 75 730 255 730 150 240

Remark

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2. Two sets additional oil circuit required on forklift.

3. Open arm range is the space between two arms tip.

4. Arm thickness “D” is the actual requested operation space.

5. Rotating bale clamps choose able.

Functions & Applications

Bale clamp as a cost-effective forklift tool, the forklift soft pack clamp has extremely high applicability for soft pack products. Like some objects that do not need to be transported on pallets, such as cotton, chemical fiber items, rags, wool, white paper, tobacco, food, etc.

Features

* The overall frame adopts all-steel high-strength overall structure, which can meet the high-strength operation needs of users.

* High efficiency and economy to handle in without work platform condition.

Options

* Custom opening ranges

* Custom arm sizes

* Various mounting classes available

* Load backrests

* Bolt bale arm

Cardboard Tobacco Wool Bale Clamp For Forklift Clamp TruckCardboard Tobacco Wool Bale Clamp For Forklift Clamp Truck

Applicable Industries

Manufacturing Plant, Garment Shops, Building Material Shops, Machinery Repair Shop

Can be customized according to size

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
