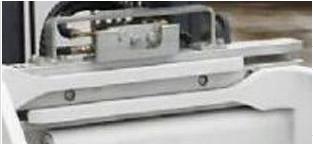

Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height
Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height
Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height
Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
Condition: :
New
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant,Machinery Repair Shops, Farms
Overall Height: :
730mm
Weight: :
556kg
Opening Range： :
550-1900mm
Vertical Center of Gravity: :
255mm
Horizontal Center of Gravity: :
315mm
Effective Thickness: :
142mm
Description

2.5t 3T forklift accessory clamp

Parameter

Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2700@500 BCS30D-008A 550-1900 460 991 1015 75 730 255 556 142 315
2700@500 BCS30D-008B 550-1900 460 991 1015 75 730 255 579 150 312
2700@500 BCS30D-009A 545-1890 460 1194 1015 75 730 255 624 142 396
2700@500 BCS30D-009B 545-1890 460 1194 1015 75 730 255 640 150 391
2700@500 BCS30D-010A 550-1900 460 915 1015 75 730 255 538 142 307
2700@500 BCS30D-010B 550-1900 460 915 1015 75 730 255 538 150 305

Remark

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The open arm range is the space between the two arm tips.

4. The arm thickness "d" is the actual required operating space.

5. Rotate the bale clamp optionally.

Functions & Applications

Bale clamp enables safe, efficient and economical handling of bale clamp products without any damage. The hydraulic accessories have different lifting capacities and are very suitable for recycling industry and bundle product applications.

Forklift bales can efficiently and economically handle almost any type of bales, including cotton, wool, synthetic fiber, textile bales, corrugated paper, newsprint, rags, hay, metal and other waste bales.

Options

* User defined opening range

* Custom arm size

* Various installation categories are available

* Load backrest

* Bolt bale arm

Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall HeightRound Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height

Applicable Industries

Wool, synthetic fiber, manufacturing plant, machinery repair shop, farm

Can be customized according to size

Customized solutions:

1. Carton Clamp

2. Block Clamp

3. Bale Clamp

4. Roll Clamp

......

all kinds of attachment
