Hydraulic Hay Bale Grabber Forklift Bale Clamp 1870mm Opening
Hydraulic Hay Bale Grabber Forklift Bale Clamp 1870mm Opening
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Bale Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Manufacturing Plant, Retail, Machinery Repair Shops, Food & Beverage Factory
Overall Height: :
740mm
Weight: :
620kg
Opening Range： :
520-1870mm
Vertical Center of Gravity: :
250mm
Horizontal Center of Gravity: :
345mm
Effective Thickness: :
150mm
Description

Forklift connection clamp for all brands of forklifts


Parameter
Hydraulic Hay Bale Grabber Forklift Bale Clamp 1870mm Opening

Capacity@
Load Center
(Kg@mm)		 Model No. Opening Range
O (mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
C (mm)		 Arm
Thickness
D (mm)		 Overall
Height
E (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
3000@500 BCS30F-001A 520-1870 460 1200 1130 75 740 250 620 150 345
3000@500 BCS30F-001B 520-1870 460 1200 1130 75 740 250 620 150 345
3000@500 BCS30F-002A 750-2100 460 1200 1265 75 740 250 650 150 350
3000@500 BCS30F-002B 750-2100 460 1200 1265 75 740 250 650 150 350
2500@500 BCS30F-003A 460-2300 460 1200 1680 75 740 250 750 150 300
2500@500 BCS30F-003B 460-2300 460 1200 1680 75 740 250 750 150 345
3000@500 BCS30F-004A 585-2000 460 1200 1265 75 740 250 625 150 345
2500@500 BCS30F-005A 460-2330 460 1000 1680 75 740 250 730 150 300
2800@500 BCS30F-006A 815-2230 460 1200 1330 75 740 250 730 150 345
2800@500 BCS30F-006B 815-2230 460 1200 1330 75 740 250 730 150 345


Remark
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Open arm range is the space between two arms tip.
4. Arm thickness “D” is the actual requested operation space.
5. Rotating bale clamps choose able.

Functions & Applications
Forklift clamp has the advantages of economy, practicality, flexibility and high efficiency. In the process of handling soft packed goods, we use binding clips to avoid damage to the goods. This is also the main advantage of improving the working efficiency of forklift. It also plays a positive role in reducing the damage rate of goods.



Options

* User defined opening range

* Custom arm size

* Various installation categories are available

* Load backrest

* Bolt bale arm

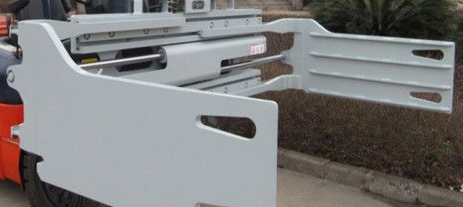

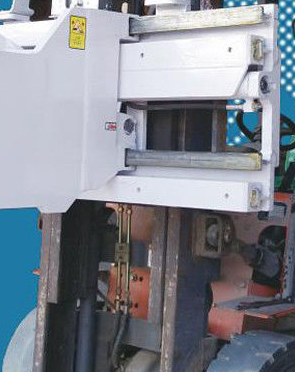

Hydraulic Hay Bale Grabber Forklift Bale Clamp 1870mm OpeningHydraulic Hay Bale Grabber Forklift Bale Clamp 1870mm Opening



Applicable Industries
Manufacturing plant, retail, machinery repair shop, food and beverage factory


Can be customized according to size
1. Customized solutions:
2. Carton Clamp
3. Block Clamp
4. Bale Clamp
5. Roll Clamp
......
all kinds of attachment
