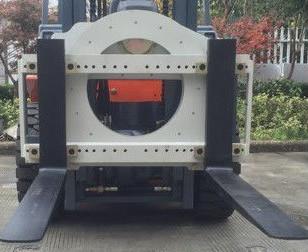

3000kg 3500kg Box Forklift Rotator Clamp Forklift Safety Accessories
3000kg 3500kg Box Forklift Rotator Clamp Forklift Safety Accessories
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Rotator Attachment
Place of Origin: :
China
Material: :
Steel
Applicable Industries:rial Shops,Building Material Shops, Chemical, Smelting industry, Foundry :
Garment Shops, Hotels, Building Material Shops,Machinery Repair Shops
Fork Max Spacing: :
1060mm
Weight: :
327kg
Carriage Width： :
1145mm
Vertical Center of Gravity: :
265mm
Horizontal Center of Gravity: :
84mm
Effective Thickness: :
150mm
Description

Forklift clamp rotor accessories2200-3500kg

Parameter

3000kg 3500kg Box Forklift Rotator Clamp Forklift Safety Accessories

Capacity@
Load Center
(Kg@mm)		 Model No. Carriage Width
B(mm)		 Fork Max.
Spacing
OTO(mm)		 Overall
Width
C(mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2200@500 RRB20D-006A 815 705 840 300 300 150 79
2200@500 RRB20D-007A 940 835 965 300 309 150 79
3000@500 RRB30D-008A 940 855 965 270 313 150 81
3000@500 RRB30D-008B 940 855 965 290 329 191 114
3000@500 RRB30D-009A 1145 1060 1170 265 327 150 84
3000@500 RRB30D-009B 1145 1060 1170 285 343 191 117
3500@500 RRB35D-010B 1065 990 1090 290 390 201 124
3500@500 RRB35D-011B 1220 1140 1245 290 406 201 127

Functions & Applications

360 degree quick flip. Used in food, chemical, sanitation, recycling, smelting, casting and other industries.

The standard fork with normal width can be fixed by a square stop bolted to the lower rod of the frame to protect safe operation.

Options

* Different car widths

* Fork

Remark:

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. A set of additional oil circuit is required on the forklift.

3. Add forks according to user needs. Please note the capacity of the fork.

4. During actual installation, please adjust the positioning block according to the width of the shift fork, select a mating surface to prevent load rotation, and the shift fork moves on the upper and lower beams.

Applicable Industries

Clothing shop, hotel, building materials shop, machinery repair shop

3000kg 3500kg Box Forklift Rotator Clamp Forklift Safety Accessories

Can be customized according to size

Customized solutions:

1. Carton Clamp

2. Block Clamp

3. Bale Clamp

4. Roll Clamp

......

all kinds of attachment
