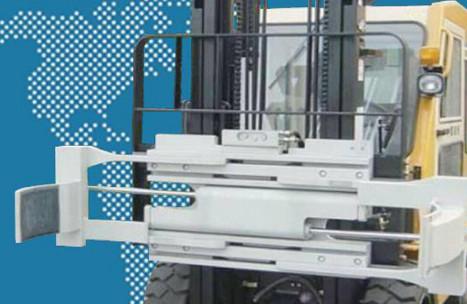

1.9t Forklift Drum Clamp Lifter Electric Forklift Parts
1.9t Forklift Drum Clamp Lifter Electric Forklift Parts
1.9t Forklift Drum Clamp Lifter Electric Forklift Parts
1.9t Forklift Drum Clamp Lifter Electric Forklift Parts
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
Product Category: :
Forklift Drum Clamp
Material: :
Steel
Applicable Industries: :
Widely used in the petroleum and chemical industry
Weight: :
295kg
CGV： :
220mm
Opening Range: :
520-1750mm
Horizontal Center of Gravity: :
104mm
Effective Thickness: :
145mm
Description

1400KG 1900kg drum clamp for forklift with different lifting capacity

Functions & Applications

The drum gripper can enable the forklift to carry two or four oil drums at the same time, ensure its safe and reliable clamping in the process of transportation, and significantly improve the handling efficiency.

It is widely used in petroleum and chemical industries and other applications that need to deal with standard barrels.

Features

* Durable T-beam arm aluminum frame structure.

* Excellent sliding arm bearing to prolong service life.

* The regenerative hydraulic valve can achieve the best arm speed.

* Excellent driving visibility.

* The rubber pad on the clamping arm can be easily replaced. It is economical and practical.

Options

* Various installation categories are available

* User defined range

Parameter

1.9t Forklift Drum Clamp Lifter Electric Forklift Parts

Capacity@
Load Center
(Kg@mm)		 Model No. Opening
Range
O
(mm)		 Frame
Width
C
(mm)		 Overall
Height
D
(mm)		 Hook
Spread
E
(mm)		 Vertical
Center of
Gravity
CGV
(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2-Drum Sideshifting
1400@500 DTS15D-001A 395-1545 940 645 890 210 285 145 100
1400@500 DTS15D-002A 485-1600 865 620 760 210 270 140 107
1900@500 DTS15D-002A 520-1750 940 620 760 220 295 145 104
2-Drum Revolving
1900@500 DTR20D-004A 520-1750 940 775 815 410 522 241 140
4-Drum Sideshifting
1400@500 DTR20D-004A 335-1480 940 645 890 220 385 147 290
1400@500 DFS15D-006A 420-1550 865 620 760 210 370 142 312
1900@500 DFS20D-007A 460-1690 940 645 890 220 395 147 295
4-Drum Revolving
1900@500 DFR20D-008A 460-1690 940 775 815 335 613 239 277

Remark:

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The opening range refers to the arc middle spacing of the roller clamping pad.

4. Double roller clamping type can carry one or two rollers.

5. Four drum clamping type can carry one, two or four drums.

6. It is suitable for handling 55 gallons (US system: 205 liters) of standard oil barrels.

Other sizes are available upon request.

Installation & Option

Hydraulic Flow & Pressure

Model Min.
Hydraulic
Flow(L/min)		 Rec.
Hydraulic
Flow(L/min)		 Max.
Hydraulic
Flow(L/min)		 Min.
Hydraulic
Pressure(Bar)		 Max.
Hydraulic
Pressure(Bar)
Side shift
DTS20D 15 25 25 35 160
DTS30D 15 40 40 35 160
Revolving
DTR20D 20 40 60 35 160
DTR30D 20 40 60 35 160

Rotator Specifications

Model Rotator Speed Rotator Torque
DTR20D 5.2r/min@57L/min 9000N.m@160Bar
DTR30D 5.2r/min@57L/min 9000N.m@160Bar

Options:

* Raise and tong arm.

* Left and right gripper arms are independent joints.

1.9t Forklift Drum Clamp Lifter Electric Forklift Parts

1.9t Forklift Drum Clamp Lifter Electric Forklift Parts

Applicable Industries

Construction Engineering, energy and mining and other applications requiring the handling of standard drums.

Can be customized according to size

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
