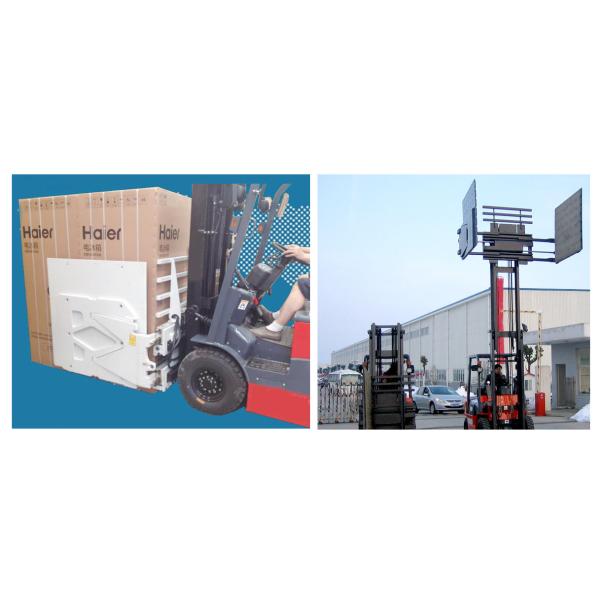

Forklift Appliance Clamp Box Forklift Carton Clamp Attachment
Forklift Appliance Clamp Box Forklift Carton Clamp Attachment
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Forklift Carton Clamps
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops, Printing
Arm Length: :
1240mm
Weight: :
770kg
Opening Range： :
560-1930mm
Vertical Center of Gravity: :
315mm
Horizontal Center of Gravity: :
483mm
Effective Thickness: :
127mm
Description

Forklift clamp attachments Carton Clamps

Functions & Applications
Designed for the warehousing, beverage, home-appliance and electronics industries carton clamps allow palletless handling, and save money on pallet purchasing, maintenance. Also improve warehouse space utilization.


Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Vulcanized rubber pads design, economically.
* Regenerative hydraulic valving for optimal arm speed.
* Excellent driver visibility.


Options
* Custom opening ranges
* Various mounting classes available


Parameter
Forklift Appliance Clamp Box Forklift Carton Clamp Attachment

Capacity@
Load Center
(Kg@mm)		Model No.Mounting ClassOpening Range
(mm)		Arm Height
A(mm)		Arm
Length
B (mm)		Frame
Width
D (mm)		Vertical
Center of
Gravity
CGV(mm)		Weight
(kg)		Effective
Thickness
ET(mm)		Horizontal
Center of
Gravity
CGH(mm)
1150@600CCS15D-001AII380-153012201220940320650127439
1600@510CCS20D-002AII560-1930122010651040325644127422
1600@535CCS20D-003AII560-1930122011701040325651127427
1600@585CCS20D-004AII560-1930122012201040315696127447
1600@610CCS20D-005AII560-1930122012201040320705127450
1400@710CCS20D-006AII560-1930122012401040315770127483
1450@685CCS20D-007AII560-1930152513701040380824127485
2300@510CCS30D-008BIII535-1850152510151015450899152485
2300@535CCS30D-009BIII535-1850152510151015450906152485


Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4.All the carton clamps are equipped with four POTS pressure regulating valves

Other size available on request.


Installation & Option
Hydraulic Flow & Pressure

ModelMin.
Hydraulic
Flow(L/min)		Rec.
Hydraulic
Flow(L/min)		Max.
Hydraulic
Flow(L/min)		Min.
Hydraulic
Pressure(Bar)		Max.
Hydraulic
Pressure(Bar)
CCS20D15252535160
CCS30D15404035160

Options:
* Four-position pressure regulator valve.
* Pad height extension.
* Heightening load backrest.
Forklift Appliance Clamp Box Forklift Carton Clamp Attachment


Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops, Printing ​


Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
