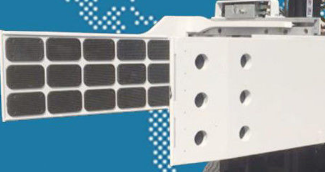

4000lbs Forklift Carton Clamps 580MM Arm Height
4000lbs Forklift Carton Clamps 580MM Arm Height
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 Unit/Units per Year
Delivery Time :
5-8 work days
Product Category: :
Forklift Attachments
Material: :
Steel
Applicable Industries: :
Manufacturing Plant, Machinery Repair Shops, Manufacturing Plant, Food & Beverage factory
Weight: :
680kg
Opening Range： :
650-2460mm
Vertical Center of Gravity: :
250mm
Horizontal Center of Gravity: :
300mm
Effective Thickness: :
150mm
Description

2200kg Forklift accessories tobacco carton clamp

Features

* Good eyesight, safe and reliable use.

* High strength T-shaped steel and aluminum alloy guide groove structure, durable.

* The sliding bearing with superior performance has long service life.

* The small rubber pad structure is adopted. After the local rubber pad of the clamping arm is worn, only the local rubber pad needs to be replaced, which is economical and practical.



Options

* User defined opening range

* Custom arm size

* Various installation categories are available

* Load backrest




Parameter
4000lbs Forklift Carton Clamps 580MM Arm Height

Capacity@
Load Center
(Kg@mm)		 Model No. Mounting Class Opening Range
(mm)		 Arm Height
A (mm)		 Arm
Length
B (mm)		 Frame
Width
D (mm)		 Arm
Thickness
C (mm)		 Overall
Height
H (mm)		 Vertical
Center of
Gravity
CGV(mm)		 Weight
(kg)		 Effective
Thickness
ET(mm)		 Horizontal
Center of
Gravity
CGH(mm)
2200@500 MTS30D-006A II 650-2460 580 1150 1600 41 740 250 675 150 300
2200@500 MTS30D-006B II 650-2460 580 1150 1600 41 740 250 680 150 300
2500@500 MTS30D-007B III 600-1945 650 1350 1015 41 740 250 720 150 300


Remark:

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The opening range is the space between the tips of the two arms.

4. The arm thickness "C" is the actual required operating space.



Other size available on request.

Installation&Option​
Hydraulic Flow&Pressure

Model Min.
Hydraulic
Flow(L/min)		 Rec.
Hydraulic
Flow(L/min)		 Max.
Hydraulic
Flow(L/min)		 Min.
Hydraulic
Pressure(Bar)		 Max.
Hydraulic
Pressure(Bar)
Sideshifting
MTS20D 15 25 25 35 160
MTS30D 15 40 40 35 160
Rotary
MTR20D 20 40 60 35 160
MTR30D 20 40 60 35 160


Rotator Specifications

Model Rotator Speed Rotator Torque
MTR20D 5.2r/min@57L/min 9000N.m@160Bar
MTR30D 5.2r/min@57L/min 9000N.m@160Bar


4000lbs Forklift Carton Clamps 580MM Arm Height



Applicable Industries
Manufacturing plant, machinery repair plant, manufacturing plant, food and beverage plant


Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
