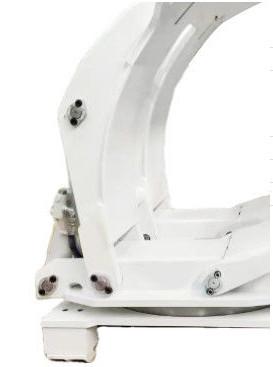

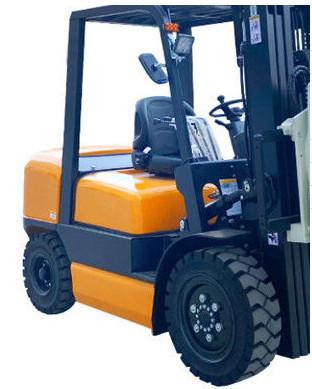

Forklift truck attachment with paper roll clamp 1700Kg 2000Kg 2700Kg for 3 ton 3.5 ton Forklift

Functions & Applications

Forklift paper roll holders are designed for factories, warehouses, printers, newspaper publishers and converters. High efficiency, safety,

There is no damage when handling the paper roll.

Features

1, The utility model has the advantages of reasonable design, compact structure, good driver visibility, convenient operation and improved work efficiency.

2, The thin arm profile and smooth arm greatly reduce roll breakout and allow tight stacking.

3, Double headed rod cylinder, the thrust and speed on both sides of the cylinder are consistent.

4, Continuous 360 ° rotation, lock any angular position of the function, and the rotation position is 90 ° or 180 °.

5, The hydraulic maintenance of cylinder valve is the key to ensure reliable lighting for long-distance transportation.

Options

1, User defined opening range

2, Position the short arm or fix the short arm

3, Split long arm

4, Special pads

Parameter

Remark:

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. "A" type fixed structure frame and fixed arm type, twp set additional oil circuit required by forklift.

"B" type fixed structure frame and adjustable arm type. Two sets of additional oil circuits are required on the forklift.

"C" rotating structure frame and adjustable arm type. Two sets of additional circuits and solenoid valves are required on forklift.

3. When the stacking operation is higher than 6800mm, use the "0" installation angle.

4. Provide non-standard splints as required.

Applicable Industries

Mills, Warehouses,Printers,Newspaper publishers

Can be customized according to size

Customized solutions:

1,Carton Clamp

2,Block Clamp

3,Bale Clamp

4,Roll Clamp

......

all kinds of attachment
