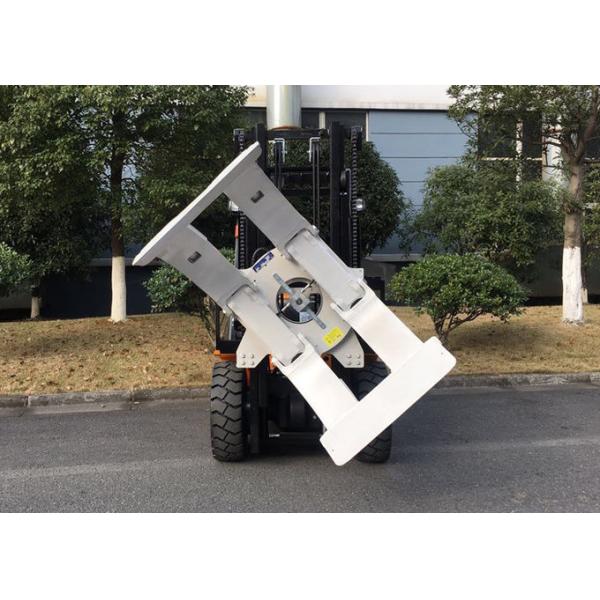

13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton
13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Paper Roll Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Garment Shops, Building Material Shops, Machinery Repair Shop, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Construction works, Energy & Mining
Load capacity: :
1700kg
Weight: :
886kg
Roll range: :
380-1830mm
Effective Thickness: :
239mm
Short Arm Length: :
930mm
Long Arm Thickness: :
1130mm
Description

1.5ton 2.5ton 3ton 3.5 ton 5ton Custom forklift truck attachment with paper roll clamp

Functions & Applications

Forklift attachment paper roll clamps are designed with optimized gripping arms and thinner cushions, which can cause manufacturing man-hour damage between rolls, trailers and paper rolls in rail cars.

Paper roll clamps are mainly used in the fields of papermaking, printing and cartons, for the loading and unloading of round materials.

Features

* Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.

* The slewing bearing adopts a large slewing bearing, which has a stronger bearing capacity.

* 360 degree continuous rotation function, self-locking at any angle position, 90 degree or 180 degree rotation positioning.

* Thin smooth surface of clamp arm, a small thickness, significantly reduce or avoid damage to the paper roll.

* The one-way valve of the paper roll clamp arm cylinder has a pressure-holding function to ensure that the paper roll is reliably clamped during long-distance transportation.

Options

* Custom opening ranges

* Positioned short arm or fixed short arm

* Split long arm

* Special pads

Parameter

13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton

Capacity
(kg)		 Roll Range
(mm)		 Model No. Type Mounting Class Mounting Angle Long Arm Length
A (mm)		 Short Arm Length
B (mm)		 Long Arm Thickness
C (mm)		 Vertical Center
of Gravity
VCG		 Weight
(kg)		 Effective Thickness
ET (mm)		 Horizontal Center of Gravity
CGH (mm)
3500 250-1520 RCP35F-001B B III 0° 1000 670 65 430 1190 218 320
3500 250-1520 RCP35F-001C B IV 0° 1000 670 65 500 1199 218 320
3500 610-1520 RCF35F-002B A III 0° 1000 670 65 430 1180 218 320
3500 610-1520 RCF35F-002C A IV 0° 1000 670 65 500 1190 218 320
2700 360-1830 RCP35F-003B B III 0° 1165 810 65 430 1289 218 353
2700 360-1830 RCP35F-003C B IV 0° 1165 810 65 500 1298 218 353
2700 635-1830 RCF35F-004B A III 0° 1165 810 65 430 1280 218 353
2700 635-1830 RCF35F-004C A IV 0° 1165 810 65 500 1289 218 353
4500 250-1300 RCP45F-005C B IV 2° 900 565 85 560 1242 198 284
4500 560-1300 RCF45F-006C A IV 2° 900 565 85 560 1233 198 284
4100 250-1520 RCP45F-007C B IV 2° 965 680 85 560 1294 198 310
4100 530-1520 RCF45F-008C A IV 2° 965 680 85 560 1285 198 310
3400 360-1830 RCP45F-009C B IV 2° 1105 815 85 560 1385 198 338
3400 660-1830 RCF45F-010C A IV 2° 965 680 85 560 1376 198 310

13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton

Capacity
(kg)		 Roll Range
(mm)		 Model No. Type Mounting Class Mounting Angle Long Arm Length
A (mm)		 Short Arm Length
B (mm)		 Long Arm Thickness
C (mm)		 Weight
(kg)		 Effective Thickness
ET (mm)		 Horizontal Center of Gravity
CGH (mm)
1200 410-1300 RCF 15F-013A A II 0° 790 580 330 354 135 221
1300 330-1150 RCF 15F-014A A II 0° 685 515 330 343 135 216
1100 450-1500 RCF 15F-015A A II 1.5° 890 680 330 435 150 270
1000 560-1600 RCF 15F-016A A II 1.5° 940 730 330 455 150 290

13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton

Capacity
(kg)		 Roll Range
(mm)		 Model No. Type Mounting Class Mounting Angle Long Arm Length
A (mm)		 Short Arm Length
B (mm)		 Long Arm Thickness
C (mm)		 Weight
(kg)		 Effective Thickness
ET (mm)		 Horizontal Center of Gravity
CGH (mm)
2000 250-1300 RCP 20F-001A B II 0° 825 570 45 677 197 287
2000 250-1300 RCP 20F-001B B III 0° 825 570 45 690 237 325
2000 630-1300 RCP 20F-002A A II 0° 825 570 45 667 197 282
2000 630-1300 RCP 20F-002B A III 0° 825 570 45 681 237 320
2000 250-1500 RCP 20F-003A B II 0° 955 775 95 751 197 283
2000 250-1500 RCP 20F-003B B III 0° 955 775 95 765 237 307
2000 530-1500 RCP 20F-004A A II 0° 955 775 95 744 197 280
2000 530-1500 RCP 20F-004B A III 0° 955 775 95 758 237 304
2000 630-1600 RCF20F-005A/B A II/III 0° 955 775 95 755 183/216 301
2000 350-1600 RCF20F-006A/B B II/III 0° 955 775 95 765 183/216 304
1700 680-1830 RCF20F-007B A III 0° 1130 930 115 880 239 445
1700 380-1830 RCP20F-008B B III 0° 1130 930 115 886 239 445
2700 330-1350 RCP30F-009B B III 0° 850 570 65 759 198 272
2700 590-1350 RCF30F-010B A III 0° 850 570 65 752 198 272
2700 250-1520 RCP30F-011B B III 0° 955 685 50 830 198 307
2700 560-1520 RCF30F-012B A III 0° 955 685 50 823 198 307
2000 250-1300 RCS20D-001A C II 0° 825 560 45 717 197 269
2000 250-1300 RCS20D-001B C III 0° 825 560 45 731 237 307
2700 250-1300 RCS30D-002A C II 0° 845 570 70 854 203 277
2700 250-1300 RCS30D-002B C III 0° 845 570 70 858 198 272

Remark:.

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2. “A” fixed construction frame and fixed arm type, twp sets additional oil circuit required on forklift.1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.Remark:

“B” fixed construction frame and adjustable arm type, two sets additional oil circuit required on forklift.

“C” rotating construction frame and adjustable arm type, two sets additional circuit and magnetic valve required on forklift.

3. Use “0” mounting angle when stacking operation higher than 6800mm.

4. Provide the Non-standard clamp plate as required.

Applicable Industries

Garment Shops, Building Material Shops, Machinery Repair Shop, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Construction works, Energy & Mining.

13h 360 Full Rotating Paper Roll Clamp Truck 1.5ton 3ton

Can be customized according to size

According to the user's needs, it can provide non-standard clamping plates to meet different paper roll clamping requirements.

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
