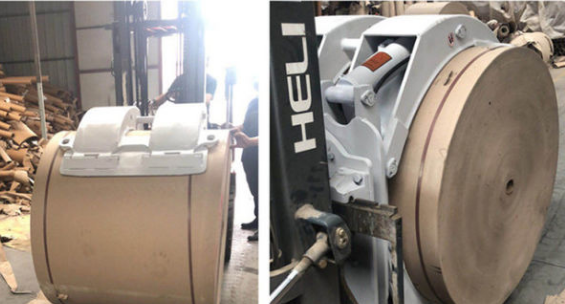

2Ton Forklift Paper Roll Clamp Long Arm 813mm
2Ton Forklift Paper Roll Clamp Long Arm 813mm
2Ton Forklift Paper Roll Clamp Long Arm 813mm
2Ton Forklift Paper Roll Clamp Long Arm 813mm
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Paper Roll Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Home Use, Construction works, Energy & Mining, Manufacturing Plant
Load capacity: :
2200kg
Weight: :
609kg
Roll range: :
350-1150mm
Effective Thickness: :
237mm
Short Arm Length: :
515mm
Long Arm Thickness: :
813mm
Description

22G forklift paper roll clamp 2000kg 2200kg


Functions & Applications
Forklift accessories: forklift accessories are developed for transporting goods. There is a folder, which is mainly used to grab and transport cylindrical foundation plates.


Features

* The design is very reasonable, the structure is compact, the shape is beautiful, the operation is convenient, and the work efficiency is effectively improved.

* Maintain the hydraulic pressure of the reel valve to ensure the reliable clamping of the reel paper during long-distance transportation.

* Bidirectional 360 degree continuous rotation function, self-locking at any angle and position



Options
* Special pads


Parameter
2Ton Forklift Paper Roll Clamp Long Arm 813mm

Capacity
(kg)		 Roll Range
(mm)		 Model No. Type Mounting Class Mounting Angle Long Arm Length
A (mm)		 Short Arm Length
B (mm)		 Long Arm Thickness
C (mm)		 Vertical Center
of Gravity
VCG		 Weight
(kg)		 Effective Thickness
ET (mm)		 Horizontal Center of Gravity
CGH (mm)
2200 350-1150 RCF22G-001B Fixed III 0° 813 515 36 361 609 237 270
2200 440-1300 RCF22G-003B Fixed III 0° 896 583 36 361 635 237 296
2200 440-1400 RCF22G-005B Fixed III 0° 953 623 36 361 650 237 299
2000 490-1525 RCF22G-007B Fixed III 0° 1013 685 36 361 665 237 328
2000 500-1600 RCF22G-009B Fixed III 0° 1047 723 36 361 680 237 332
2200 200-1150 RCF22P-002B Adjustable III 0° 813 515 36 361 614 237 270
2200 200-1300 RCF22P-004B Adjustable III 0° 896 583 36 361 640 237 296
2200 200-1400 RCF22P-006B Adjustable III 0° 953 623 36 361 655 237 299
2000 200-1525 RCF22P-008B Adjustable III 0° 1013 685 36 361 672 237 328
2000 200-1600 RCF22P-010B Adjustable III 0° 1047 723 36 361 690 237 332


Remark:.
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer
2. Use “0” mounting angle when stacking operation higher than 6800mm.
3. Provide the Non-standard clamp plate as required.

Applicable Industries
Specialty, construction engineering, metallurgy, energy, factory


2Ton Forklift Paper Roll Clamp Long Arm 813mm


Can be customized according to size

Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
