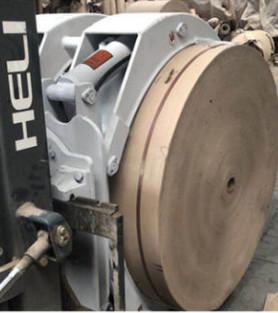

Tissue Forklift Paper Roll Clamp Forklift 4000 LBS
Tissue Forklift Paper Roll Clamp Forklift 4000 LBS
Tissue Forklift Paper Roll Clamp Forklift 4000 LBS
Tissue Forklift Paper Roll Clamp Forklift 4000 LBS
Specifications
Brand Name :
Bonafe
Place of Origin :
China
MOQ :
1 Units
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Unit/Units per Year
Delivery Time :
5-8 work days
product category: :
Paper Roll Clamp
Place of Origin: :
China
Material: :
Steel
Applicable Industries: :
Home Use, Construction works, Energy & Mining, Manufacturing Plant
Load capacity: :
2200kg
Weight: :
609kg
Roll range: :
350-1150mm
Effective Thickness: :
237mm
Short Arm Length: :
515mm
Long Arm Thickness: :
813mm
Description

22G Tablets Paper rolls 2000kg 2200kg


Functions & Applications
Accessories for forklift trucks are accessories for forklift trucks transporting various goods. The paper roller holder is one of them. They are mainly used for recording and handling basic cylindrical papers.


Features

* The design is very sensible, the structure is compact, the field of vision is excellent, the operation is comfortable and the efficiency of work is effectively improved.

* Hold the hydraulic pressure of the roller valve to ensure a reliable tension of the paper roller during long haul.

* bidirectional 360 degree continuous rotation, self-locking at every angle



Options
* Special pads


Parameter
Tissue Forklift Paper Roll Clamp Forklift 4000 LBS

Capacity
(kg)		 Roll Range
(mm)		 Model No. Type Mounting Class Mounting Angle Long Arm Length
A (mm)		 Short Arm Length
B (mm)		 Long Arm Thickness
C (mm)		 Vertical Center
of Gravity
VCG		 Weight
(kg)		 Effective Thickness
ET (mm)		 Horizontal Center of Gravity
CGH (mm)
2200 350-1150 RCF22G-001B Fixed III 0° 813 515 36 361 609 237 270
2200 440-1300 RCF22G-003B Fixed III 0° 896 583 36 361 635 237 296
2200 440-1400 RCF22G-005B Fixed III 0° 953 623 36 361 650 237 299
2000 490-1525 RCF22G-007B Fixed III 0° 1013 685 36 361 665 237 328
2000 500-1600 RCF22G-009B Fixed III 0° 1047 723 36 361 680 237 332
2200 200-1150 RCF22P-002B Adjustable III 0° 813 515 36 361 614 237 270
2200 200-1300 RCF22P-004B Adjustable III 0° 896 583 36 361 640 237 296
2200 200-1400 RCF22P-006B Adjustable III 0° 953 623 36 361 655 237 299
2000 200-1525 RCF22P-008B Adjustable III 0° 1013 685 36 361 672 237 328
2000 200-1600 RCF22P-010B Adjustable III 0° 1047 723 36 361 690 237 332


Remark:.

1. Get the actual capacity of the stacker and accessories from the stacker manufacturer

2. If the stack operation is higher than 6800mm, use the "0" installation angle.

3. Provide non-standard rails where appropriate.



Applicable Industries
Households, construction, energy and mining, manufacturing plants


Tissue Forklift Paper Roll Clamp Forklift 4000 LBS


Can be customized according to size

Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
