Specifications
Brand Name :
LAKER
Model Number :
CZB5C 48V/100A
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
15 days After Order Confirmation and Deposit
Packaging Details :
Carton, Standard Wooden Pallet
Type :
Forklift Lithium Ion Battery Chargers
Model :
CZB5C 48V/100A
Battery Parameter :
48V 580-800Ah
Size :
526×360×882 Mm
Description

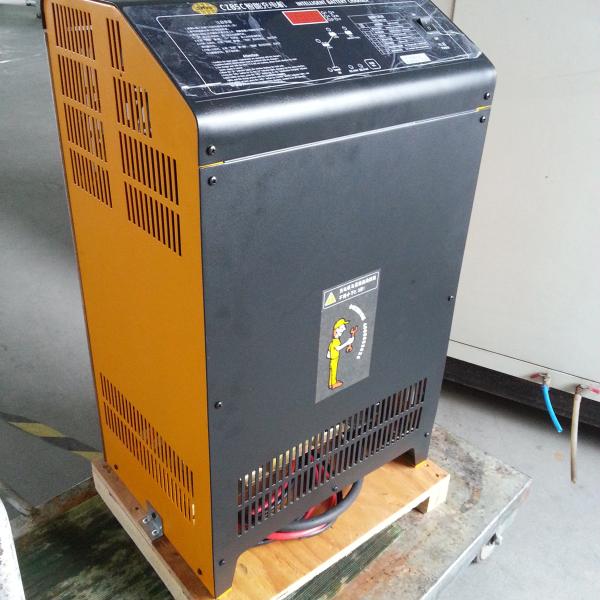

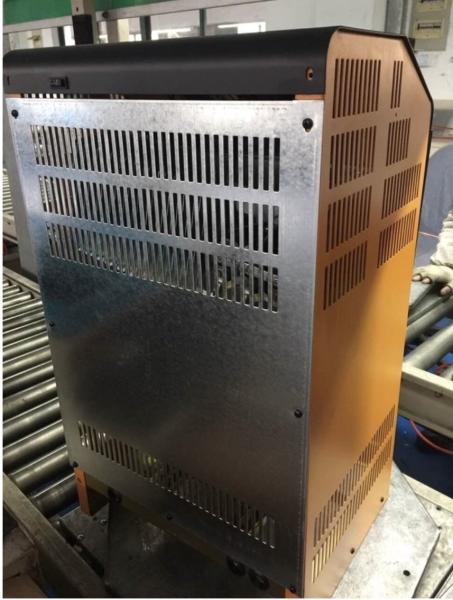

Laker Lead Acid Forklift Battery Charger

Specification Input current A Input power kVA

Output current

DC A

Battery parameters outline dimension mm

Net weight

kg

@220V @380V @415V V Ah
8.5h-11h
D48V/55A 10.8 6.3 5.7 4.1 55 48 320-440 466×361×785 62
D48V/65A 12.8 7.4 6.8 4.9 65 48 375-520 466×361×785 65
D48V/80A 15.7 9.1 8.3 6.0 80 48 465-640 466×361×785 68
D48V/100A 19.7 11.4 10.4 7.5 100 48 580-800 526×360×882 86
D48V/120A 23.6 13.7 12.5 9.0 120 48 700-960 526×360×882 95
D80V/65A 21.3 12.3 11.3 8.1 65 80 375-520 526×360×882 87
D80V/70A 23.0 13.3 12.2 8.8 70 80 405-560 526×360×882 87
D80V/80A 26.2 15.2 13.9 10.0 80 80 465-640 526×360×882 89
D80V/100A 32.8 19.0 17.4 12.5 100 80 580-800 526×360×882 95
D80V/120A 39.4 22.8 20.9 15.0 120 80 700-960 526×360×882 107


Product Strength

  • The Voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
  • Nixie tube would display charger parameters such as battery voltage, charge current, capacity and recharged time. It could als show the code of charging curve and fault. High-intensity LED lamp would indicate running state of this charging unit.
  • Functions of automatic detection, delaying and soft-start, Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
  • Tis device could also record data as the end of recharge for 30 times.
  • Protection and alarm functions of open crcuit, reverse connection, over load and short circuit breakdown.
  • Protection and alarm functions of overheat fault of transformer and module.
  • Equalization charge could ensure caacity consistency of battery packs, function of automatic initial charge, function of desulfuration charge.

48V 100A High-Quality Wholesale Laker Lead Acid Forklift Battery Charger

Company Strength
1. All forklift related products and spare parts are originally manufactured by domestic first - class manufacturers , and inspected by professional and technical personnel .
2. Provide customers with online technical advice or after - sales solutions at any time .

3. Our commitment to service , knowledge and product availability makes us a one - stop shop for our customers ' business needs .

About us
LAKER AUTO PARTS CO., LIMITED is ONE-STOP-SHOP offering parts and accessories for forklifts trucks, low-speed electric vehicles,manual tray loaders, automated tray packaging machines, portable dump trucks, mobile food tray trucks, portable toilet trailers, electric stackers and auxiliary material handling equipment guarantee high-performance products at the most competitive price.Our core products are as follows:
1. Lead acid Batteries for Electric forklift trucks and Electric vehicles,
2. Intelligent automatic battery chargers including industrial frequency and high frequency,
3. Regular black and non-marking solid tires for forklifts used at small working fields and warehouses,
4. Hydraulic solid tire press machine for mounting and dismounting the solid tires,
5. Mobile loading ramp and fixed dock leveler for loading the container and goods,
6. Low-speed Electric vehicle with loading platform 1Ton to 3Ton for warehouse/airport/port dock material delivery.
and various of battery accessories for application of maintenance and replacement. (Such as battery plates, gauntlets, connectors, battery watering systems, battery safety valves, battery vent plugs, battery cables and etc.)
7. Many different kinds of golf cart and sightseeing vehicles
8. A range of work vehicles that can conveniently pack and carry objects (Hand Palle Truck,Automatic Pallet Truck,CRAWLER Dumper Truck) and Electric Stackers that can operate within limited space
9. Mobile Toilet Trailer involved in everyday life
10. Mobile Food Trailer in operation

FAQ

1.Do you provide free of sample?
Sample depends on the Model No., material and quantity. We provide free of sample with freight collect, but some of samples need client to pay the cost.

2. Do you offer customization service?
Yes ,We can printing your brand (logo, artwork)on the products or laser engraving your brand. We can custom your packaging according to your design.AII copyright own by clients and we promised don't disclose any info.

3. How about the delivery time?
Most orders will be shipped within 3-10 days after payment being received.

4. What are the advantages of your company?
One-stop solution for forklift parts, excellent manufacturer auditing and integration system, reasonable price and quality assurance.

5. Which payment method does your company support?
T/T and L/C are preferred. we will do our best to meet your needs, negotiable.
