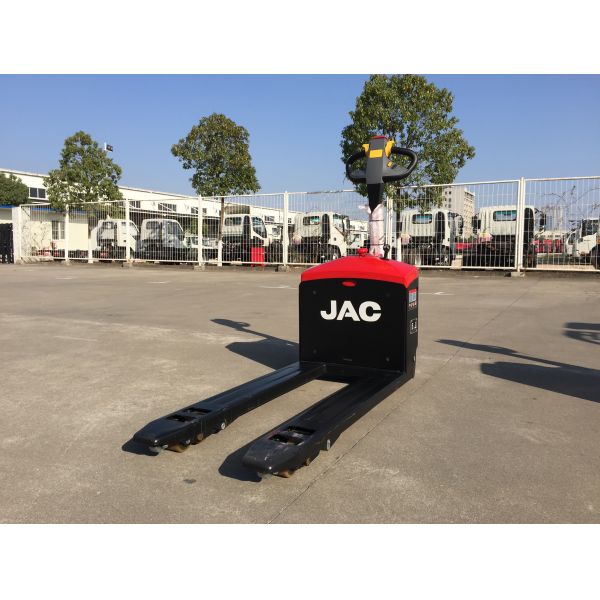

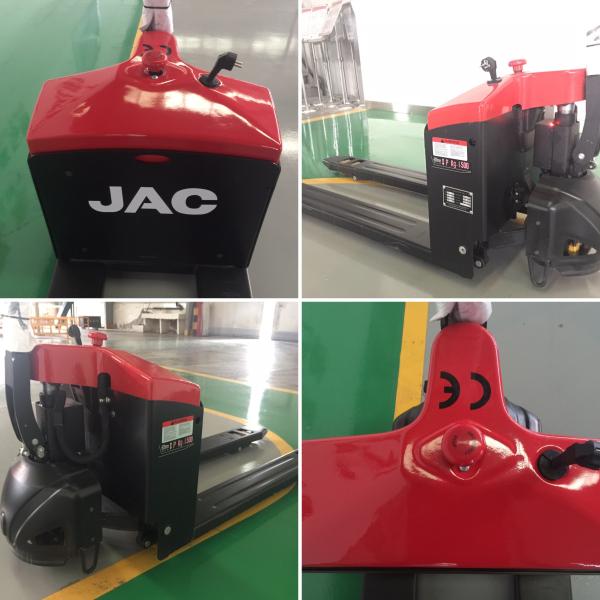

Third Generation Pedestrian Walkie Pallet Jack Forklift 1.5 Ton
Third Generation Pedestrian Walkie Pallet Jack Forklift 1.5 Ton
Third Generation Pedestrian Walkie Pallet Jack Forklift 1.5 Ton
Third Generation Pedestrian Walkie Pallet Jack Forklift 1.5 Ton
Specifications
Brand Name :
JAC
Model Number :
CBD15-Ⅲ
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
Hefei, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
8 work days
Rated traction weight :
1500kg
Power :
electric
Battery :
Lead-acid battery
Lowered hength :
85mm
Load centre :
600mm
Wheels type :
PU
Lift :
200mm
Min.Turning radius :
1425mm
Width of forks :
560/685mm
Fork dimensions :
50/150/1150mm
Battery voltage :
24V
Battery rated capacity :
2*12/75Ah
Description

Third Generation pedestrian Walkie Pallet Jack Forklift 1.5 Ton

Characteristics 1.1 Manufacturer Unit JAC
1.2 Model 　 CBD15-Ⅲ
1.3 Power unit 　 electric
1.4 Operation 　 pedestrian
1.5 Rated traction weight kg 1500
1.6 Load centre mm 600
1.7 Axle centre to fork face mm 875
1.8 Wheel base mm 1202
Weights 2.1 Service weight with battery kg 193/200
Wheels/Tyres 3.1 Wheels type 　 PU
3.2 Driving wheel size Φ×w(mm)　 Φ210×70
3.3 Bearing wheel size Φ×w(mm)　 Φ80×60
3.4 Wheels, number front/rear (x = driven) 　 4/1x
3.5 Track width mm 410/535
Dimensions 4.1 Lift mm 200
4.2 Overall height(With handle) mm 612/1195
4.3 lowered hength mm 85
4.4 Overall length mm 1628
4.5 Length to fork face mm 478
4.6 Overall width mm 560/685
4.7 Fork dimensions s/e/l (mm) 50/150/1150
4.8 Width of forks mm 560/685
4.9 Min.Ground clearance mm 35
4.10 Aisle width with pallet 1000 x 1200 across forks mm 1828
4.11 Aisle width with pallet 800 x 1200 along forks mm 1878
4.12 Min.Turning radius mm 1352
Performance 5.1 Travel speed,laden/unladen km/h 4.2/4.5
5.2 The max Lifting speed, laden/unladen mm/s 22/25
5.3 Lowering speed, laden/unladen mm/s 38/28
5.4 Maximum climbing ability, with/without load % 6/10
5.5 Service brake 　 electromagnetic braking
Drive 6.1 Drive motor, 60 minute rating kW 0.75
6.2 Lift motor rating at S3 15% kW 0.8
6.3 Battery according to DIN 43531/35/36 A,B,C,no 　 no
6.4 Battery voltage/rated capacity V/Ah 2×12/65
6.5 Battery weight (± 5%) kg 40
Others 7.1 Type of drive control 　 DC power
7.2 Noise level at operator‘s ear dB(A) 67
7.3 Steering type 　 Mechanical steering
