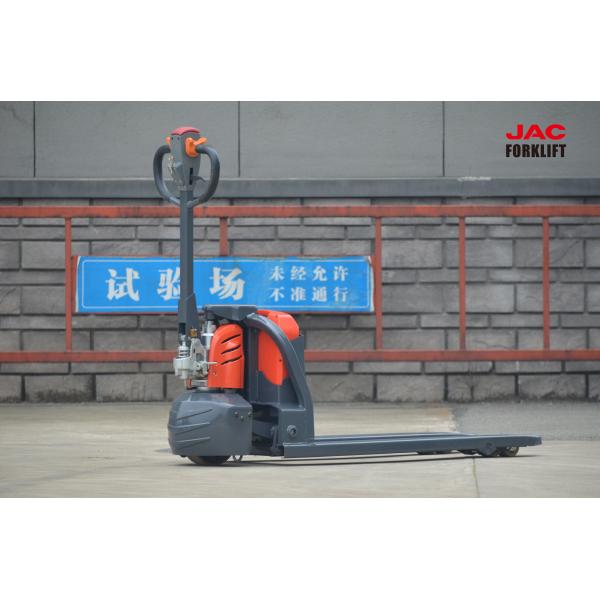

2 Ton Hydraulic Electric Pallet Truck For Material Handling
2 Ton Hydraulic Electric Pallet Truck For Material Handling
2 Ton Hydraulic Electric Pallet Truck For Material Handling
2 Ton Hydraulic Electric Pallet Truck For Material Handling
Specifications
Brand Name :
JAC
Model Number :
CBD20Li
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
Hefei, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
8 work days
Rated traction weight :
2000kg
Power :
electric
Battery :
Lithium Battery
Lowered hength :
85mm
Load centre :
600mm
Wheels type :
PU
Lift :
200mm
Min.Turning radius :
1398mm
Width of forks :
550/685mm
Fork dimensions :
50/150/1150mm
Battery voltage :
48V
Battery rated capacity :
20/30Ah
Description

2 Ton Hydraulic Electric Pallet Truck For Material Handling

Electric Pallet Truck,they are especially suitable for cargo loading and unloading, handling, stacking, etc for food, bank, light textile, station, port, logistics and other enterprises.

The service environment:

a. Altitude does not exceed 1200 meters

b. temperature not over +40℃,not under +5℃；

c. when environment temperature at +40℃,the relative humidity can’t over 50%,At low temperature,allow big relative humidity;

d. ground need hard and flat;

e. It is forbidden to use this car in corrosive environment such as flammable and explosive or acid base.

Characteristics 1.1 Manufacturer Unit JAC
1.2 Model 　 CBD18Li
1.3 Power unit 　 electric
1.4 Operation 　 pedestrian
1.5 Rated traction weight kg 1500
1.6 Load centre mm 600
1.7 Axle centre to fork face mm 944
1.8 Wheel base mm 1243
Weights 2.1 Service weight with battery kg 156
Wheels/Tyres 3.1 Wheels type 　 PU
3.2 Driving wheel size Φ×w(mm)　 Φ210×70
3.3 Bearing wheel size Φ×w(mm)　 Φ80×60
3.4 Wheels, number front/rear (x = driven) 　 1x/4
3.5 Track width mm 390/535
Dimensions 4.1 Lift mm 200
4.2 Overall height(With handle) mm 610/1212
4.3 Lowered hength mm 85
4.4 Overall length mm 1615
4.5 Length to fork face mm 465
4.6 Overall width mm 550/685
4.7 Fork dimensions s/e/l (mm) 50/150/1150
4.8 Width of forks mm 550/685
4.9 Min.Ground clearance mm 35
4.10 Aisle width with pallet 1000 x 1200 across forks mm 1815
4.11 Aisle width with pallet 800 x 1200 along forks mm 1865
4.12 Min.Turning radius mm 1405
Performance 5.1 Travel speed,laden/unladen km/h 4.2/4.5
5.2 Lifting speed,laden/unladen mm/s 40/62
5.3 Maximum climbing ability, with/without load % 5/8
5.4 Service brake 　 Electromagnetic
Drive/Battery 6.1 Drive motor, 60 minute rating kW 0.75
6.2 Lift motor rating at S3 15% kW 0.8
6.3 Battery voltage/rated capacity( lithium battery) V/Ah 24/20 24/30 24/40 24/60
6.4 Battery weight (± 5%) kg 6 7.8 10.2 13.2
Others 7.1 Type of drive control 　 DC power
7.2 Noise level at operator‘s ear dB(A) ≤70
7.3 Steering type 　 Mechanical

2 Ton Hydraulic Electric Pallet Truck For Material Handling

2 Ton Hydraulic Electric Pallet Truck For Material Handling

2 Ton Hydraulic Electric Pallet Truck For Material Handling

2 Ton Hydraulic Electric Pallet Truck For Material Handling

2 Ton Hydraulic Electric Pallet Truck For Material Handling

2 Ton Hydraulic Electric Pallet Truck For Material Handling
