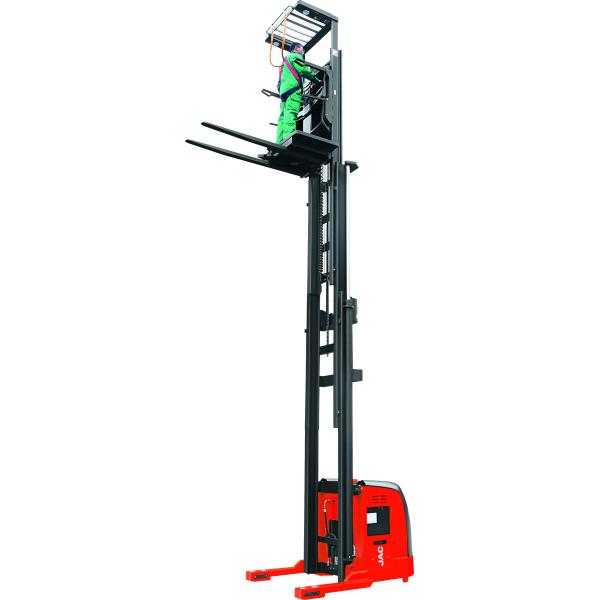

1500kg 9m Electric High Level Llop Order Picker Puller For Warehouse
1500kg 9m Electric High Level Llop Order Picker Puller For Warehouse
1500kg 9m Electric High Level Llop Order Picker Puller For Warehouse
1500kg 9m Electric High Level Llop Order Picker Puller For Warehouse
Specifications
Brand Name :
JAC
Model Number :
OPS15-90
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
Hefei, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000
Delivery Time :
8 work days
Rated traction weight :
1500kg
Power :
electric
Battery :
Lead-acid battery
Load centre :
600mm
Wheels type :
PU
Lifting height :
9000mm
Min.Turning radius :
1800mm
Width of forks :
715mm
Fork dimensions :
45/100/1220mm
Battery voltage :
24V
Battery rated capacity :
770Ah
Description
Model 　 OPS15
Drive type 　 Battery
Load capacity/rated load Q(kg) 1500
Load centre distance c(mm) 600
Load distance, centre of drive axle to fork x(mm) 206
Tyre size, front mm Φ310×125
Tyre size, rear mm Φ128×73
Aditional wheels mm Φ150×47
Wheels, number front rear(x=driven wheels) 　 1x+2/4
Height, mast lowered h1(mm) 3750
Max. lifting height h3(mm) 9000
Height , mast extended h4(mm) 11230
Height of platform h7(mm) 230
lowed height h13(mm) 80
Overall length l1(mm) 3200
Coupling height l2(mm) 1975
Overall width b1/b2( (mm) 1100/1352
Forks length s/e/l(mm) 45/100/1220
Width overall forks b5(mm) 530/715
Height of overhead guard h6(mm) 2290
Aisle width for pallets 1000×1200 crossways Ast(mm) 1400
Aisle width for pallets 800×1200 lengthways Ast(mm) 1400
Turning radius Wa(mm) 1800
Travel speed, laden/unladen Km/h 7.7/8
Lift speed, laden/unladen m/s 0–0.15/0–0.28
Lowering speed, laden/unladen m/s 0–0.28/0–0.3
Battery voltage, nominal capacity K5 V/Ah 24/770(1100)
Battery weight Kg 610(850)
Battery dimensions L/w/h mm 982x397x561
Service weight (with battery) 　 3870
