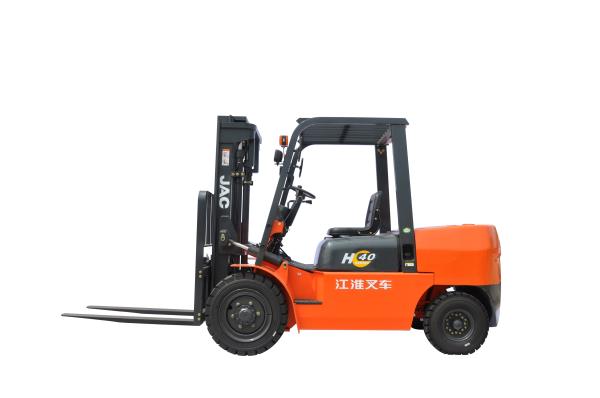

Warehouse Triple Mast Diesel JAC Forklift Truck 4 Tonne For Material Handling
Warehouse Triple Mast Diesel JAC Forklift Truck 4 Tonne For Material Handling
Specifications
Brand Name :
JAC FORKLIFT
Model Number :
Diesel Forklift
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
He Fei
MOQ :
1
Payment Terms :
other
Delivery Time :
8 work days
Power :
Diesel Engine
Load Capacity :
4.0T
Load center :
500mm
Lift height :
3000~5000mm
Fork length :
1220mm
Condition :
New
Min. lifting height :
3000mm
Weight :
4300KGS,1500Kg-4150kg
Description

Diesel Forklift (4.0T Forklift Truck, H Series)/ JAC / Lift Height Triplex Mast

Product description
The air intake system installed at high level, as well as the two air filters of the warehouse equipment, offers full protection to the engine of the diesel forklift.


Smartly designed, the V shape engine mount of the diesel forklift effectively reduces the vibration during operation and creates comfortable working environment for the operator.

Features
1. To extend the lifespan of the bearing and the kingpin, oilless bearing is adopted for self-lubrication.

2. The tailstock of the material handling equipment adopts integrated design to enhance the shock resistance performance of the product. The technology has been granted the national patent.
.
3. Our patented technologies-10T main reducing gear and the axle housing effectively improve the bearing capacity of the drive axle.



Technical Parameters of Diesel Forklift

Model Unit CPCD40H
Power type Diesel
Rated load kg 3800 4000
Load center distance mm 500
Lift height mm 3000
Free lift height mm 135
Fork size L×W×T mm 1070×150×50
Minimum turning radius mm 2835
Maximum travel speed /Full load km/h 19.5
Maximum travel speed/ No load km/h 19.6
Fork height at maximum lift (with backrest) mm 4260
Standard Mast height mm 2125
Front wheel 250-15-16PR
Rear wheel 6.50-10-10PR
Wheelbase mm 1900
Front wheel/rear wheel mm 1160/1065
Self weight/Without load Kg 5070 5200
Battery/ Voltage/capacity V/Ah 12/80
Engine/ Model 4D30G31 Xinchang,China 4D32G31 Xinchang,China
Engine/Rated output kw/r.p.m 36.8/2500 36.8/2500
Engine/ Rated torque Nm/r.p.m 174/1800-2000 186/1600-1800
Tire type (FR/RR) Pneumatic
Number of wheels (FR/RR) 2/2



Related Information

Brand: JAC

Target Market: Global market

Certificate: CE/SGS/ISO 9001/ISO 14001/SGS

Production Capacity: 20,000 sets per year
