Specifications
Brand Name :
OEM
Certification :
CE;ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
40days
Packaging Details :
Standard Export Packing
product name :
CZ Purlin Roll Forming Machine
Production Capacity :
10-15m/min
Voltage :
380V 50Hz 3phases
Warranty :
1 Year
Automatic operation :
MItsubishi PLC and converter and screen.
Control Mode :
PLC
Description

Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction

Product Description

CZ purlin roll forming machine has now become an indispensable equipment for construction of I-beam and channel steel in tunnels, subway, hydropower stations, underground caverns, etc

features:

1. Upgraded version of CZ integrator, fast transformation; 1-2 minutes transformation

2. specifications and CZ

3. Realization of Automatic Conversion of CZ Specification

4. Realize CZ automatic flip 180 degrees

Bottom Width C:100-350
Purlin Height C:50-100
Suitable Material Type Galvanized Steel Strip,Hot Rolled Coil(Black Steel Strip)
Yeild Strength 230-300Mpa
Thickness 2.0-3.5mm
Feeding Width C:200-590mm
Punching /Cutting Motor 45 KW Hydra System
Transmission Motor
Size shaft diameter 90/75mm
Wall Panel Thickness 35mm
Base Specification H500*199
Purlin Spec. Changing Mode Computer Control
Forming Speed 0-30m /min
Forming Station 20 Stations
Blade Material Cr12(Die Steel)
Roller Material Cr12(Die Steel)
Mode of Speed Regulation AC Inverter Speed Regulation
Driving Mode Reduction Motor + Chain Transmission
Cutting Mode Hydraulic Type,Pre-cutting
Punching Mode Hydraulic Type,Pre-punching(Dual hole+Single hole 14*25)
Measuring Mode Photoelectric Encoder
Control Mode PLC
Operation Mode Button+Touch Screen
Voltage 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph

Machine Parts

1) CZ purlin machine punching system

with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction

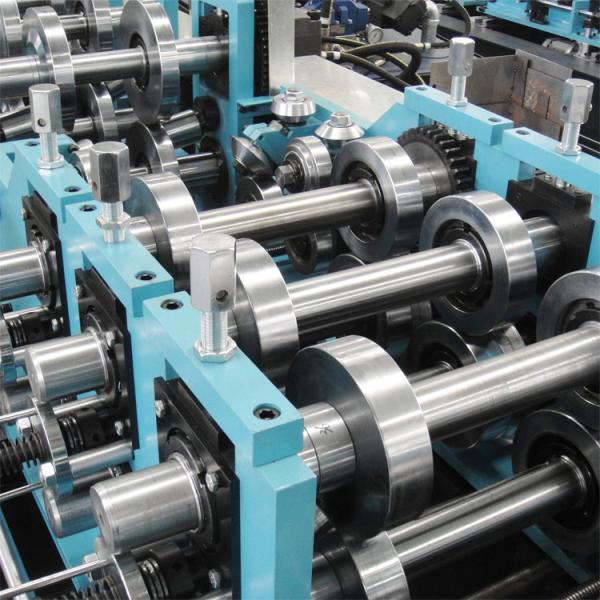

2) CZ purlin machine rollers

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

with black treatment or Hard-Chrome Coating for options.

With feeding material guide, body framemade from 400# H type steel by welding

Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction

3) CZ purlin machine post cutter

No need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

Durable CZ Purlin Roll Forming Machine For Tunnels / Subway Construction
