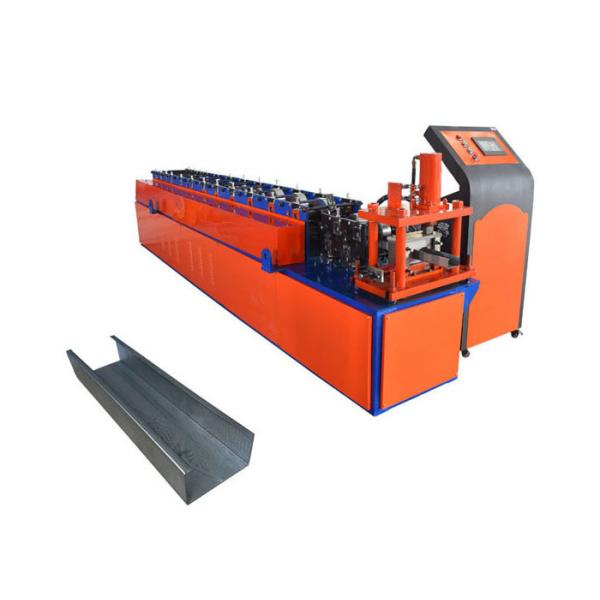

Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
Specifications
Brand Name :
OEM
Certification :
CE;ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets per month
Delivery Time :
40days
Packaging Details :
Standard Export Packing
name :
Light Steel Keel Roll Forming Machine
color :
blue and red
shaft :
70mm
cutting :
hydraulic cutting
drive :
motor and chain
Production Capacity :
30--40m/min
Description

Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable

Quick Details

Warranty: 18 months

Type: Tile Forming Machine

Production Capacity: 15-20m/min

Certification: CE/ISO9001

Applicable Industries: Manufacturing Plant

Condition: New

Tile Type: galvanized

Use: Wall

Voltage: 380V 50Hz 3phases

Dimension(L*W*H): 5400mm*850mm*1150mm

Weight: 3200KG

Key Selling Points: Long Service Life

Roller station: 12 steps

Shaft diameter: 50mm with keyway

Shaft material: High grade 45 # steel

Roller material: Cr12mov , Heated and quenched

Tansmission gear: Heat treatment

Motor power: 5.5 KW( lichao ,shanghai)

Forming speed: 15-20m/min

PLC system: Delta ,Taiwan

Length controller: Omorn , japan

Operation: English touch screen

Technical Parameters:

No. Item Specification
1 Can Formed Material PPGI,GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.2-1.5mm or as your customized
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed As your drawing
7 The size of the roll forming machine 6500mmx1200mmx1500mm
8 Speed 15-20m/min
9 Diameter of shaft 75mm
10 Weight of the Machine 4500-4800KGS
11 Material of rollers Cr12
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 10kw
15 Power of hydraulic system 4.5kw
16 Power of main molding core 5.5kw

machine pictures

Furring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine DurableFurring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine DurableFurring Gypsum Channel Roll Forming Machine , Light Steel Keel Roll Forming Machine Durable
