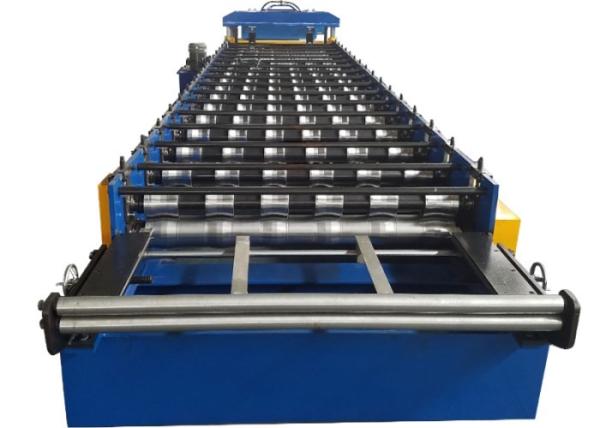

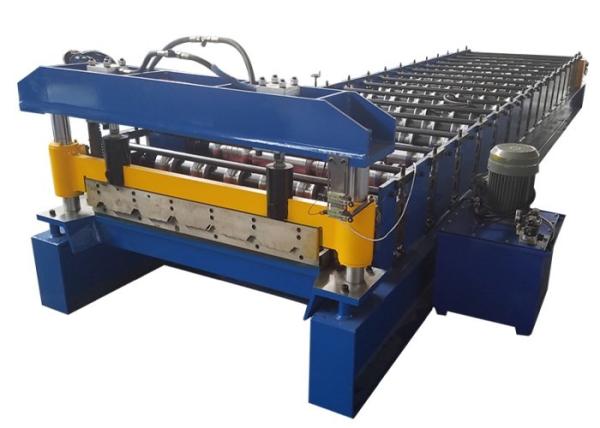

Zinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof Panels
Zinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof Panels
Zinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof Panels
Zinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof Panels
Specifications
Brand Name :
XINGHE
Model Number :
XH1050
Certification :
CE,ISO,TUV,BV
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS / MONTH
Delivery Time :
20 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Production Capacity :
4-8m/min
Power(W) :
4+4kw
Voltage :
380v,50hz,3 phrases
Dimension(L*W*D) :
7400*1200*1500mm
Weight :
2.5T
Warranty :
One year guarantee
After-sales Service :
Engineers available to service
Machine color: :
Any color as you like
Control system :
Automatic PLC control
ODM :
Available
Description

Zinc Glazed Tile Aluminium Roof Sheet Roll Forming Machine Roll Former Profile Metal Roof Panels Machine

1.. Hydraulic Cutting Galvanized Corrugated Roof Panel Cold Roll Forming Machine Roll Former sheet forming machine made in china Processing technique and deployment
Hydraulic Cutting Galvanized Corrugated Roof Panel Cold Roll Forming Machine Roll Former sheet forming machine made in china Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.
User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.
the material used in Hydraulic Cutting Galvanized Corrugated Roof Panel Cold Roll Forming Machine Roll Former sheet forming machine made in china

Note: we can design and produce machine according to your special size requirement.

II-Machine components
- The 5tons manual uncoiler and its base
- coil sheet guiding and adjust equipment
- Film covered device (optional)
- Main roll forming system
- Step punching device
- Post-cutting device
- Hydraulic station
- PLC control system
- Final product runout table

III-Work Flow
uncoiling the sheet---guiding the sheet---covering the film---roll forming---step punching---measuring the length---cutting the panel---panels to the supporter

IV-Main Technical parameter of making tiles machines

No.itemParameter(all is subject to our final design)

1

Suitable raw materialTypeCommon galvanized & pre-painted steel
Yield strength235MPa(or other high strength steel)
Thickness(mm)0.3-0.8mm
width(mm)According to final design
2Manual uncoiler’s capacityMax.2.5tons
3Forming speed(m/min)About 2-3m/min(punching time included)
4Main motor power(KW)3.0KW
5Hydraulic power(KW)3.0KW
6Forming roller groups Around 13 groups
7Raw material of forming rollerHigh quality No.45 steel
8Raw material of cutting bladeCr12 mould steel with quenched treatment
9controlling systemMitsubishi PLC & converter
10Suitable industrial voltageAccording to your special requirement
11Machine dimensions(L*W*H)8m×1.5m×1.2m
12Machine weight

About 10 tons

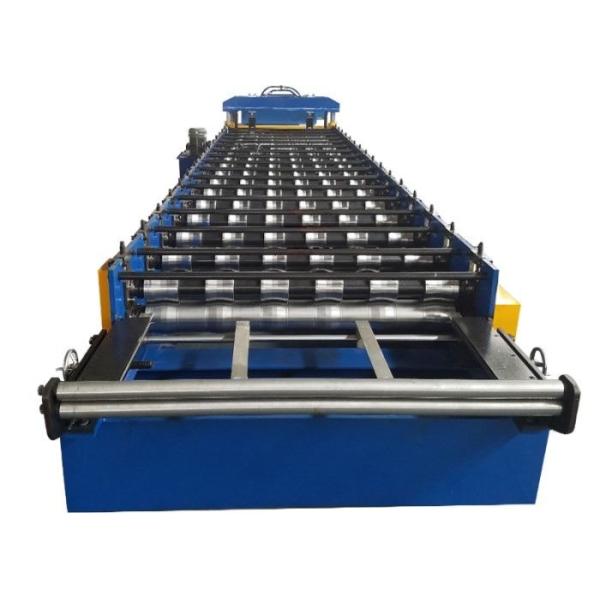

Zinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof PanelsZinc Glazed Tile Aluminium Roof Sheet Cold Roll Forming Machines for Profile Metal Roof Panels
