Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
Specifications
Brand Name :
XINGHE
Model Number :
XH-GUTTER
Certification :
CE,ISO,TUV,BV
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Price :
7000-15000SUD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS / MONTH
Delivery Time :
20 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Production Capacity :
8-12m/min
Power(W) :
32kw
Voltage :
380v,50hz,3 phrases
Dimension(L*W*D) :
8.5*0.8*1.2m
Weight :
16T
Warranty :
One year guarantee
After-sales Service :
Engineers available to service
Machine color: :
Any color as you like
Control system :
Automatic plc control
ODM :
Available
Description

China Manufacturing Machines Eps / Rock Wool Sandwich Wall Panel Production Line / Machine

Product Introduction

With reasonable structure, the machine is easy to operate with completed functions.

The plate is formed through such processes as feeding, profiling , dispensing, heating, trimming, gouging and cutting.

The machine adopts precise low-speed metering pump, frequency control (or stepless speed variation) with computer control and dose is accurate.

It can produce flat plate and corrugated sheet of many specifications and models, including the sandwich panel with thickness of 40-300mm and width of 950-1200mm, and corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.

This machine applies to color steel plate, aluminum plate, stainless steel plate and so on.


Main parameter :

A. Uncoiler

Type of uncoiler: Manual
Material of coil: color coating coil
Thickness of sheet: 0.3~0.8mm
Width of coil: 1250mm
Weight of coil: ≤ 5 t
Inside diameter of coil: 480~520mm

B. Into Shearing Device

Type of Shearing: Electrical Shearing
Driven Power: 0.75 kwc.

C. Forming Machine Itself

Design of profile: see list and drawings attached
Type of forming: single layer forming
Stands of forming: 16 stands
Roller diameter: ¢80mm
Material of roller: 45 steel heat treatment
Thickness of chromic plating of roller surface: 0.05~0.06mm
Speed of forming: 5~6.0m/min synchronies with panel machine
Type of synchronies: electrical synchronies
Driven power: 3.0 kw
Installation instruction: two parts
Size of forming machine: 11000×2200×2200mm
Weight of forming machine: ~6 t

D. Control Panel

Electrical Voltage: 380V/3Ph/50Hz
Type of controlling: PLC (Mitsubishi Japan)
Touch screen: Mt506 (Taiwan)
Speed measure device: OMRoM (Japan)
Parts of electrical control system: Simenz
Transducer: (Mitsubishi Japan)/0.4KW (Made in China)
Model: SPC Machine

Drawing of Panel:

Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / MachineEps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / MachineEps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine

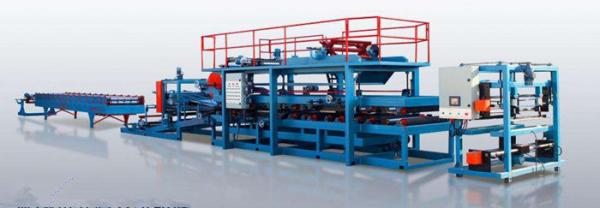

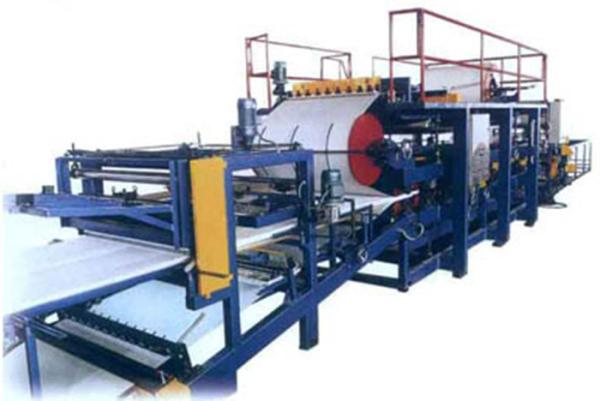

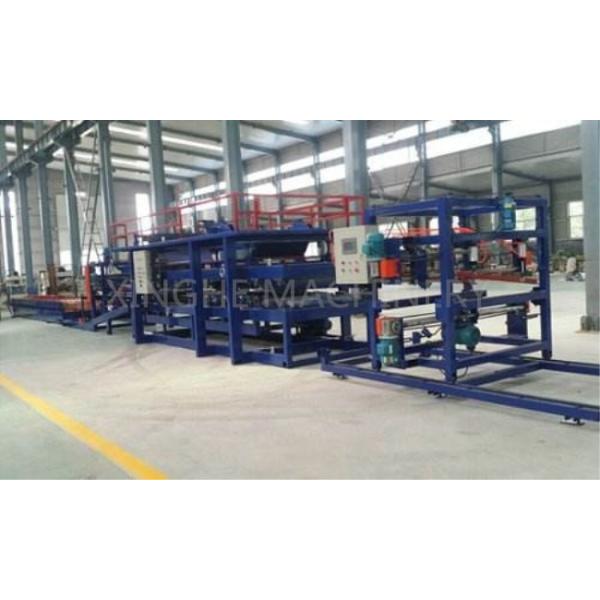

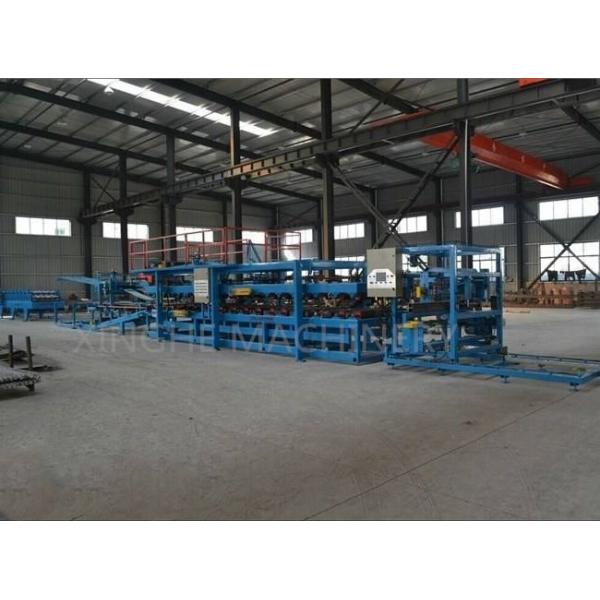

Machine shows

Eps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / MachineEps / Rock Wool Sandwich Wall Panel Roll Forming Production Line / Machine
