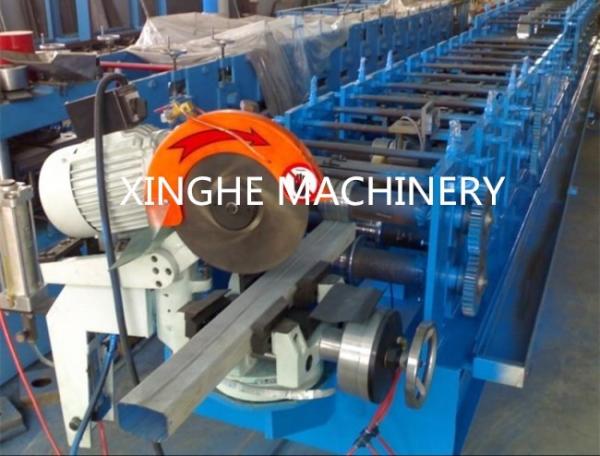

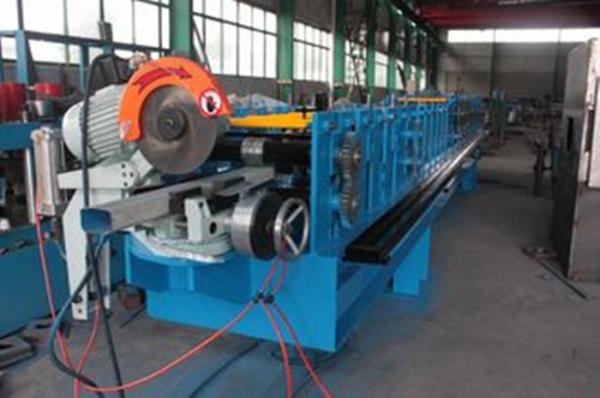

Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
Specifications
Brand Name :
XINGHE
Model Number :
XH-GUTTER
Certification :
CE,ISO,TUV,BV
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Price :
7000-15000SUD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 SETS / MONTH
Delivery Time :
20 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Production Capacity :
8-12m/min
Power(W) :
4+3kw
Voltage :
380v,50hz,3 phrases
Dimension(L*W*D) :
8.5*0.8*1.2m
Weight :
4.5T
Warranty :
One year guarantee
After-sales Service :
Engineers available to service
Machine color: :
Any color as you like
Control system :
Automatic plc control
ODM :
Available
Description

Hot Sale! PLC Control and Hydraulic Station/Passed CE and ISO/ downspout pipe roll forming machine

Advantage of gutter roll forming machine

The gutter roll forming machine is more durable than the tranditional ppc pipe, and not easy to aging. It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

The Chart of Process flow
Decoiling→ feeding→ pressing and forming the shape→ measure the length→ cutting→ receiving the plates
Equipment sketch map:

Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station

Main technical parameters

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 410mm
3 Rollers 12rows
4 Dimensions 7.2*1.2*1.5m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller Φ70mm
9 Weight About 1.0T
10 Voltage 380V 50Hz 3phases
11 Material of the cutting plate Cr12
12 Hydraulic 40#
13 Processing precision Within 1.00mm
14 Control system PLC control

The equipment includes:
Roll forming machine,
1 set
Hydraulic cutter
1 set
Electrical control system
1 set
Hydraulic system
1 set
Hydraulic system
2 PC 1m*1m
Manual decoiler
1 set Max loading 5Ton

Downspout Pipe Roll Forming Machine PLC Control And Hydraulic Station
